Moulding rocker panels for BMW 3 Series E90 LCI 318i (2011)

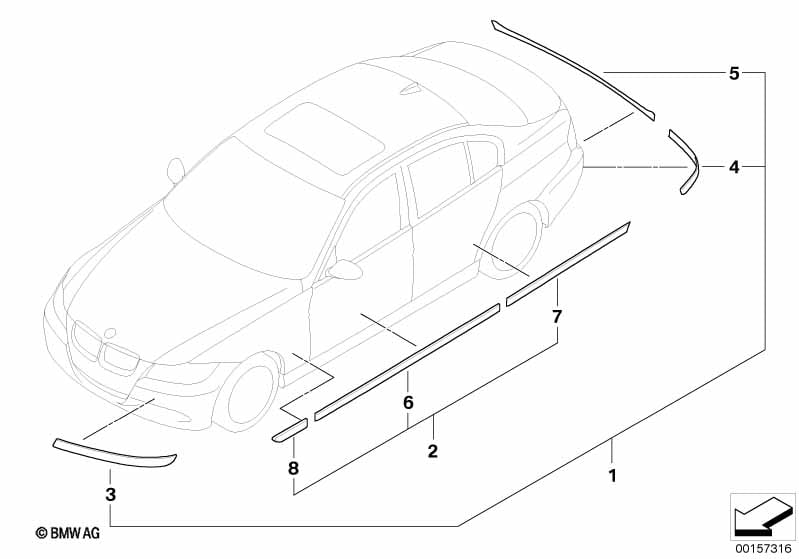

This Moulding rocker panels technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. |
|||||||||
| 02 | Impact guard strips, side | 1 | 51190406581 | $298.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Moulding door front left | 1 | 51120404051 | $83.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Moulding door front right | 1 | 51120404052 | $83.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Moulding door rear left | 1 | 51120404053 | $73.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Moulding door rear right | 1 | 51120404054 | $73.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Moulding fender front right | 1 | 51120413864 | ENDED, +core | Shop at ECS Tuning | |||||
| 08 | Moulding fender front left | 1 | 51120413865 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
