Aerodynamics package for BMW 1 Series E87 LCI 123d (2011)

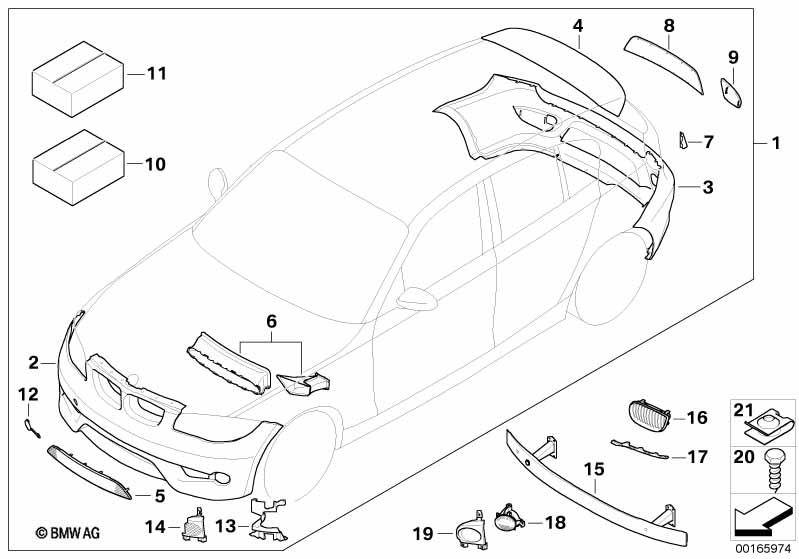

This Aerodynamics package technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| For vehicles with Active steering and Towing hitch, detachable |
S217A=No S235A=No |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190306663 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package primed | 1 | 51190306665 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Park Distance Control (PDC) |
S217A=No S235A=No S508A=Yes |
|||||||||
| 01 | Aerodynamic package primed | 1 | 51190301929 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190301931 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Park Distance Control (PDC), rear |
S217A=No S235A=No S507A=Yes |
|||||||||
| 01 | Aerodynamic package primed | 1 | 51190391912 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190391910 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Headlight cleaning system |
S217A=No S235A=No S502A=Yes |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190306662 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package primed | 1 | 51190306664 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Fog lights |
S217A=No S235A=No S520A=Yes |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190306663 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package primed | 1 | 51190306665 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fog lights, left | 1 | 63176924655 | $125.48 | Shop at ECS Tuning | |||||
| -- | Fog lights, right | 1 | 63176924656 | $125.48 | Shop at ECS Tuning | |||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Headlight cleaning system and Park Distance Control (PDC) |
S217A=No S235A=No S502A=Yes S508A=Yes |
|||||||||
| 01 | Aerodynamic package primed | 1 | 51190301928 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190301930 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Park Distance Control (PDC) and Fog lights |
S217A=No S235A=No S508A=Yes S520A=Yes |
|||||||||
| 01 | Aerodynamic package primed | 1 | 51190301929 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190301931 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fog lights, left | 1 | 63176924655 | $125.48 | Shop at ECS Tuning | |||||
| -- | Fog lights, right | 1 | 63176924656 | $125.48 | Shop at ECS Tuning | |||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Headlight cleaning system and Fog lights |
S217A=No S235A=No S502A=Yes S520A=Yes |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190306662 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package primed | 1 | 51190306664 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fog lights, left | 1 | 63176924655 | $125.48 | Shop at ECS Tuning | |||||
| -- | Fog lights, right | 1 | 63176924656 | $125.48 | Shop at ECS Tuning | |||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Headlight cleaning system and Park Distance Control (PDC), rear |
S217A=No S235A=No S502A=Yes S507A=Yes |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190391909 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package primed | 1 | 51190391911 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Park Distance Control (PDC), rear and Fog lights |
S217A=No S235A=No S507A=Yes S520A=Yes |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190391910 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package primed | 1 | 51190391912 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fog lights, left | 1 | 63176924655 | $125.48 | Shop at ECS Tuning | |||||
| -- | Fog lights, right | 1 | 63176924656 | $125.48 | Shop at ECS Tuning | |||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Towing hitch, detachable and Headlight cleaning system and Park Distance Control (PDC) and Fog lights |
S217A=No S235A=No S502A=Yes S508A=Yes S520A=Yes |
|||||||||
| 01 | Aerodynamic package primed | 1 | 51190301928 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET | 1 | 51190301930 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Fog lights, left | 1 | 63176924655 | $125.48 | Shop at ECS Tuning | |||||
| -- | Fog lights, right | 1 | 63176924656 | $125.48 | Shop at ECS Tuning | |||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering or Headlight cleaning system or Park Distance Control (PDC) or Fog lights |
S217A=Yes S502A=No S508A=No S520A=No |
|||||||||
| 02 | Trim cover, bumper, primed, front | ERSATZ | 1 | 51110306658 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Headlight cleaning system and Park Distance Control (PDC) and Fog lights |
S217A=No S502A=No S508A=Yes S520A=No |
|||||||||
| 02 | Trim cover, bumper, primed, front | ERSATZ | 1 | 51110301914 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Headlight cleaning system and Park Distance Control (PDC) and Fog lights |
S217A=No S502A=Yes S508A=No S520A=No |
|||||||||
| 02 | Trim cover, bumper, primed, front | ERSATZ | 1 | 51110306657 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering and Headlight cleaning system and Park Distance Control (PDC) and Fog lights |
S217A=No S502A=Yes S508A=Yes S520A=No |
|||||||||
| 02 | Trim cover, bumper, primed, front | ERSATZ | 1 | 51110301913 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| -- | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| -- | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| -- | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| -- | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| 03 | Bumper trim panel, primed, rear | ERSATZ | 1 | 09/2004 | 51120301917 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 03 | Bumper trim panel, primed, rear | ERSATZ | 1 | 09/2004 | 51120301916 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 04 | Spoiler, trunk lid, primed | ERSATZ | 1 | 09/2004 | 51710306667 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Spoiler, trunk lid, painted | TITANSILBER | 1 | 11/2004 | 51710398153 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Spoiler, trunk lid, painted | SPAKRLING GRAPH | 1 | 11/2004 | 51710398216 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Spoiler, trunk lid, painted | SAPHIRSCHWARZ | 1 | 11/2004 | 51710398217 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Spoiler, trunk lid, painted | QUARZBLAU | 1 | 11/2004 | 51710398218 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Spoiler, trunk lid, painted | SCHWARZ UNI | 1 | 11/2004 | 51710398219 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Grid, center | FRONTSCHÜRZE | 1 | 09/2004 | 51130301933 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Front air guide aeropackage replacement | LUFTFUEHRUNGEN | 1 | 11/2004 | 51130397770 | +core | Shop at ECS Tuning | |||
| 08 | Grid, center | HECKSCHÜRZE | 1 | 09/2004 | 51130304962 | ENDED | Shop at ECS Tuning | |||
| 09 | Set of side grilles | HECKSCHÜRZE | 1 | 11/2004 | 51130398324 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Assembly parts front apron | ERSATZ | 1 | 09/2004 | 51110392897 | ENDED | Shop at ECS Tuning | |||
| 11 | Assembly parts rear apron | ERSATZ | 1 | 09/2004 | 51120392898 | ENDED | Shop at ECS Tuning | |||
| 12 | Flap, towing eye, primed | 1 | 09/2004 | 51117056922 | $51.79 | Shop at ECS Tuning | ||||
| 13 | Fog light holder set, aerodyn. package | 1 | 09/2004 | 51110397824 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fog lights |
S520A=No |
|||||||||
| 14 | Fog light cover set, aerodyn. package | AEROPAKET | 1 | 11/2004 | 51110397739 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Carrier, bumper front | 1 | 51117058450 | Shop at ECS Tuning | ||||||
| 16 | Grille left | CHROM | 1 | 51137128613 | $53.41 | Shop at ECS Tuning | ||||
| 16 | Grille right | CHROM | 1 | 51137128614 | $53.41 | Shop at ECS Tuning | ||||
| 17 | Supporting ledge left | 1 | 51768045443 | $4.85 | Shop at ECS Tuning | |||||
| 17 | Supporting ledge right | 1 | 51768045444 | $4.85 | Shop at ECS Tuning | |||||
| 18 | Fog lights, left | 1 | 63176924655 | $125.48 | Shop at ECS Tuning | |||||
| 18 | Fog lights, right | 1 | 63176924656 | $125.48 | Shop at ECS Tuning | |||||
| 19 | Bracket, fog lamp left | 1 | 51117118151 | Shop at ECS Tuning | ||||||
| 19 | Bracket, fog lamp right | 1 | 51117118152 | Shop at ECS Tuning | ||||||
| 20 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 21 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 123d Aerodynamics package?
- This technical diagram illustrates the Aerodynamics package within the Retrofitting / conversion / accessories group for the 1 Series E87 LCI 123d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Aerodynamic package painted (Part #51190306663).
- Which models use the hardware listed in this Aerodynamics package?
- The hardware and components featured in the Aerodynamics package are specific to the 1 Series E87 LCI 123d produced during 2011. These technical specifications ensure that parts like the Aerodynamic package painted (51190306663) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Aerodynamics package assembly?
- Each item in the Aerodynamics package corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 123d, you can identify the Aerodynamic package painted by locating its position on the schematic, which then links to the official BMW part number 51190306663 for the Retrofitting / conversion / accessories section.
