Aerodynamic package painted for BMW 3 Series E92 320i (2010)

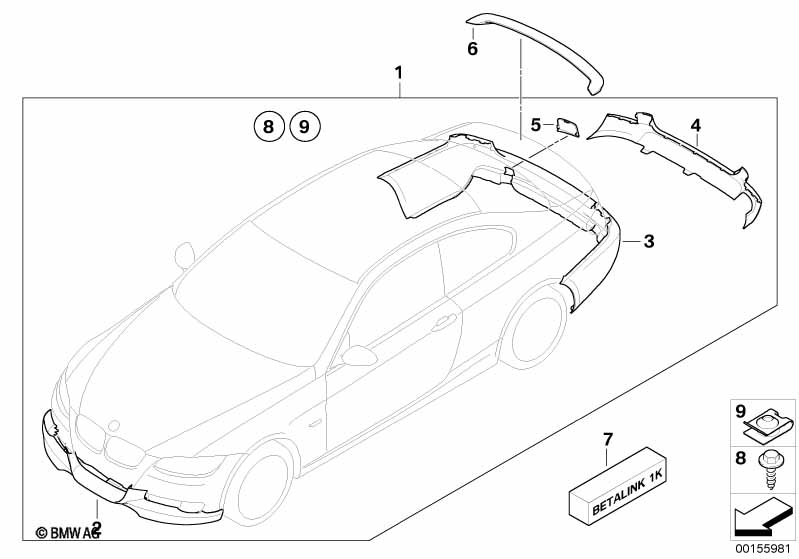

This Aerodynamic package painted technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. For vehicles with M Sports package and M Aerodynamics package |
P337A=No S715A=No |
||||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Active cruise control and Active pedestrian protection |
S507A=No S508A=No S541A=Yes S8TFA=No |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET. | 1 | 51190416912 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Active cruise control and Active pedestrian protection |
S507A=No S508A=No S541A=No S8TFA=No |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET. | 1 | 51190416910 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Active cruise control and Active pedestrian protection |
S507A=Yes S508A=No S541A=Yes S8TFA=No |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET. | 1 | 51190416909 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Active cruise control and Active pedestrian protection |
S507A=No S508A=Yes S541A=Yes S8TFA=No |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET. | 1 | 51190416909 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Active cruise control and Active pedestrian protection |
S507A=Yes S508A=No S541A=No S8TFA=No |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET. | 1 | 51190416911 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and Active cruise control and Active pedestrian protection |
S507A=No S508A=Yes S541A=No S8TFA=No |
|||||||||
| 01 | Aerodynamic package painted | CODE UNI/MET. | 1 | 51190416911 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version China and Active pedestrian protection |
L8AAA=No S8TFA=No |
|||||||||
| 02 | Front attachment | 1 | 51110414371 | $389.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version China and Active cruise control and Active pedestrian protection |
L8AAA=No S541A=Yes S8TFA=No |
|||||||||
| 02 | Front attachment | 1 | 51110414372 | $417.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 03 | Rear trim piece, aerodynamics | 1 | 51120415359 | $597.00 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 03 | Rear trim piece, aerodynamics | 1 | 51120414374 | $617.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | Insert, rear trim piece | 6 ZYL. | 1 | 51120414375 | $239.95 | ENDED | Shop at ECS Tuning | |||
| Required only as replacement | ||||||||||
| 05 | Cover towing hinge | 1 | 51120415360 | $9.75 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 06 | Trunk lid spoiler, painted | 1 | 51710443131 | ENDED, +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| Required only as replacement | ||||||||||
| 07 | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex head screw with washer | ST4,8X16MM | 2 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 09 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
