Retrofit 'Sport' diffusor for BMW 3 Series E93 330i (2010)

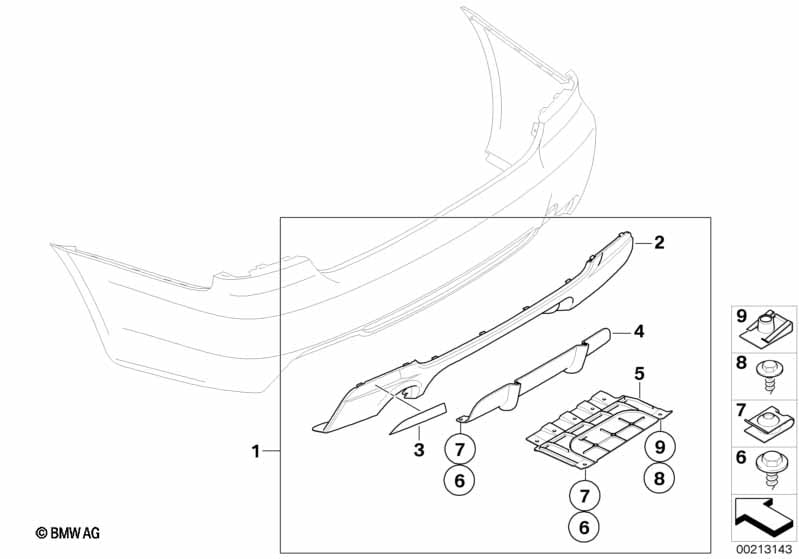

This Retrofit 'Sport' diffusor technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| For vehicles with National version China and Trailer coupling and M Aerodynamics package |
L8AAA=No S3ACA=No S715A=Yes |
|||||||||
| 01 | Diffusor nozzle, HP, primed | EINFLUTIG | 1 | 51122159174 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version China and Trailer coupling and M Aerodynamics package and titan-silber or le-mans-blau or black-sapphire metallic or alpinweiss 3 or space-grey metallic |
L8AAA=No S3ACA=No S715A=Yes M354=Yes M381=Yes M475=Yes U300=Yes WA52=Yes |
|||||||||
| 01 | Diffusor nozzle HP, painted | CODE UNI/MET | 1 | 51122159195 | ENDED | Shop at ECS Tuning | ||||
| other color code, primered version | ||||||||||
| For vehicles with National version China and Trailer coupling and M Aerodynamics package |
L8AAA=No S3ACA=No S715A=Yes |
|||||||||
| 02 | Trim, diffusor nozzle, HP, primed, top | 1 | 51122158794 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Adhesive film set, diffusor HP | 1 | 51122167219 | Shop at ECS Tuning | ||||||
| 04 | Trim, diffusor nozzle, bottom | 1 | 51122158793 | +core | Shop at ECS Tuning | |||||
| 05 | Guide, Sport diffusor, center lower | 1 | 51122179544 | Shop at ECS Tuning | ||||||
| 06 | Hex head screw with washer | ST4,8X16MM | 2 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X12 | 1 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Clip nut | M6 | 1 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
