Retrofit kit, armrest front for BMW 3 Series E36 320i (1995)

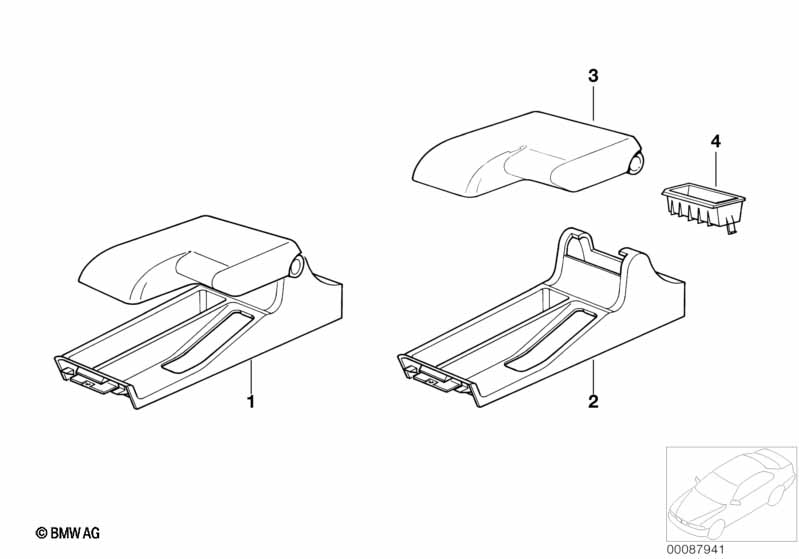

This Retrofit kit, armrest front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric, fl.weave,"Clover"/gray |
D6TT=Yes |
|||||||||
| 01 | Installing set armrest vinyl | DUNKELGRAU | 1 | 82409404409 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather flat weave/klassisch-rot or Leather, Montana/Casual/klassisch-rot UPHOLSTERY LEATHER MONTANA |
C1GD=Yes P7GD=Yes |
|||||||||
| 01 | Installing set armrest leather | KLASSISCHROT | 1 | 09/1996 | 82409404415 | $305.78 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather, Montana/Casual/sand-beige or Leather, Montana/Soft/sand-beige |
P7SN=Yes P8SN=Yes |
|||||||||
| 02 | Installing set armrest | BEIGE | 1 | 51169401666 | $342.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,"Clover"/gray or Nappa Casual leather/light grey or Leather Montana/Soft/light grey |
D6TT=Yes P7TH=Yes P8TH=Yes |
|||||||||
| 02 | Installing set armrest | GRAU | 1 | 51169401665 | $342.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or klassisch-rot or blue-violet or safran-gelb or pastell-grün or stahl-blau or Black or meer-grün or tanin-rot or türkis metallic or Cloth "Boa Boa"/avus-blue or Cloth "Boa Boa"/grey or Cloth "Boa Boa"/sierra-red |
AT=Yes GD=Yes MA=Yes SG=Yes SK=Yes ST=Yes SW=Yes SX=Yes TD=Yes TK=Yes E7AV=Yes E7TT=Yes E7ZR=Yes |
|||||||||
| 02 | Installing set armrest | SCHWARZ | 1 | 51169401664 | $342.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,"Clover"/gray |
D6TT=Yes |
|||||||||
| 03 | Armrest leather | DUNKELGRAU | 1 | 51168204471 | $118.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather flat weave/türkis UPHOLSTERY LEATHER MONTANA |
C1TK=Yes |
|||||||||
| 03 | Armrest leather | TÜRKIS | 1 | 51168173255 | $206.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather, Montana/Casual/blue-violet or Leather, Montana/Soft/blue-violet UPHOLSTERY LEATHER MONTANA |
P7MA=Yes P8MA=Yes |
|||||||||
| 03 | Armrest leather | BLAUVIOLETT | 1 | 51168173257 | $122.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather flat weave/klassisch-rot or Leather, Montana/Casual/klassisch-rot UPHOLSTERY LEATHER MONTANA |
C1GD=Yes P7GD=Yes |
|||||||||
| 03 | Armrest leather | KLASSISCHROT | 1 | 09/1996 | 51168173254 | $206.46 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather, Montana/Casual/safran-gelb or Leather, Montana/Soft/safran-gelb UPHOLSTERY LEATHER MONTANA |
P7SG=Yes P8SG=Yes |
|||||||||
| 03 | Armrest leather | SAFRANGELB | 1 | 51168173258 | $118.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather, Montana/Casual/sand-beige or Leather, Montana/Soft/sand-beige UPHOLSTERY LEATHER MONTANA |
P7SN=Yes P8SN=Yes |
|||||||||
| 03 | Armrest leather | BEIGE | 1 | 51168173256 | $122.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest center console beige | BEIGE | 1 | 51165A733B8 | Shop at ECS Tuning | |||||
| 03 | Armrest leather | DUNKELBEIGE | 1 | 51168204472 | $118.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Nappa Casual leather/light grey or Leather Montana/Soft/light grey UPHOLSTERY LEATHER MONTANA |
P7TH=Yes P8TH=Yes |
|||||||||
| 03 | Armrest leather | HELLGRAU | 1 | 51168173252 | $118.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest leather | DUNKELGRAU | 1 | 51168204471 | $118.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric, fl.weave,"Clover"/anthracite or Fabric, fl.weave,"Clover"/klassisch-rot or Fabric, fl.weave,"Clover"/türkis or Cloth "Boa Boa"/avus-blue or Cloth "Boa Boa"/grey or Cloth "Boa Boa"/sierra-red or Imitation leather/black |
D6AT=Yes D6GD=Yes D6TK=Yes E7AV=Yes E7TT=Yes E7ZR=Yes K1SW=Yes |
|||||||||
| 03 | Armrest vinyl | SCHWARZ | 1 | 51168151018 | $79.50 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather flat-weave/anthracite or Leather, Montana/Casual/stahl-grau or Leather, Montana/Casual/black or Leather, Montana/Casual/meer-grün or Leather, Montana/Soft/stahl-grau or Leather, Montana/Soft/black or Leather, Montana/Soft/meer-grün UPHOLSTERY LEATHER MONTANA |
C1AT=Yes P7ST=Yes P7SW=Yes P7SX=Yes P8ST=Yes P8SW=Yes P8SX=Yes |
|||||||||
| 03 | Armrest leather | SCHWARZ | 1 | 51168173251 | $161.19 | ENDED | Shop at ECS Tuning | |||
| 03 | Armrest center console black | SCHWARZ | 1 | 51165A733B5 | Shop at ECS Tuning | |||||
| 04 | Storing partition rear | 1 | 51168119626 | $12.27 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
