Retrofit, armrest front, movable for BMW 5 Series E60 525i (2007)

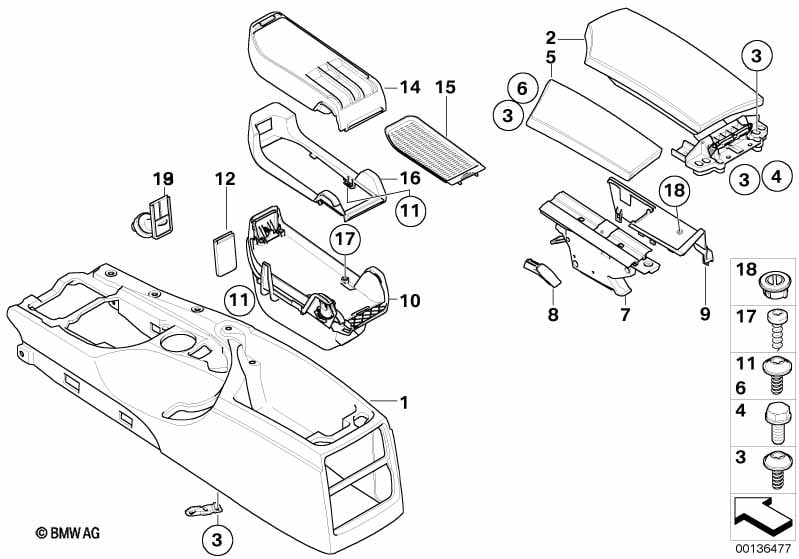

This Retrofit, armrest front, movable technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Shift knob/selector lever handle see main group 25 For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 3.0 hours, which may vary depending on the condition of the vehicle and the equipment in it. |
|||||||||
| For vehicles with trüffel-braun |
TE=Yes |
|||||||||
| 01 | Center console | BEIGE | 1 | 51166951004 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 01 | Center console | GRAU | 1 | 51169191773 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 01 | Center console | BEIGE | 1 | 51169191774 | $243.69 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or natur-braun or amethyst or kastanienbraun or Black |
AT=Yes NG=Yes RH=Yes RK=Yes SW=Yes |
|||||||||
| 01 | Center console | SCHWARZ | 1 | 51169191776 | $243.69 | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 02 | Cover, centre console | GRAU | 1 | 51167133209 | $195.70 | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 02 | Cover, centre console | BEIGE | 1 | 51167133208 | $195.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather filled napa "Skin"/amethyst or Leather filled napa "Skin"/schwarz |
LDRH=Yes LDSW=Yes |
|||||||||
| 02 | Cover, centre console | SCHWARZ | 1 | 51167060055 | $403.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with anthracite or amethyst or kastanienbraun or Black or trüffel-braun |
AT=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 02 | Cover, centre console | SCHWARZ | 1 | 51167060051 | $195.70 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | X | 07147122394 | $0.25 | Shop at ECS Tuning | |||||
| 04 | Screw | M6X25 | 2 | 07/2008 | 07129902341 | $0.53 | ENDED | Shop at ECS Tuning | ||
| For vehicles with grey |
AD=Yes |
|||||||||
| 05 | Center arm rest | GRAU | 1 | 51162455264 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 05 | Center arm rest | BEIGE | 1 | 51167133220 | $81.44 | Shop at ECS Tuning | ||||
| For vehicles with Leather filled napa "Skin"/amethyst or Leather filled napa "Skin"/schwarz |
LDRH=Yes LDSW=Yes |
|||||||||
| 05 | Center arm rest | SCHWARZ | 1 | 51167060169 | $193.05 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or amethyst or kastanienbraun or Black or trüffel-braun |
AT=Yes RH=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 05 | Center arm rest | SCHWARZ | 1 | 51167060165 | $193.05 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | 4X12MM | X | 07147122390 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Adjuster unit | 1 | 07/2007 | 51167060171 | $173.00 | ENDED | Shop at ECS Tuning | |||
| 07 | Adjuster unit | 1 | 51169144941 | $173.00 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sliding piece | 1 | 51167116358 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 09 | Center armrest cover | SCHWARZ | 1 | 51167111436 | $12.14 | Shop at ECS Tuning | ||||
| 09 | Center armrest cover | BEIGE | 1 | 51167133657 | $12.14 | Shop at ECS Tuning | ||||
| 09 | Center armrest cover | GRAU | 1 | 51167133658 | $12.14 | ENDED | Shop at ECS Tuning | |||
| only applies to telephone | ||||||||||
| 10 | Center armrest tray | 1 | 51167112395 | $71.35 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | X | 07147122391 | $0.38 | Shop at ECS Tuning | |||||
| 12 | Blind plate | 1 | 51167077659 | $1.40 | Shop at ECS Tuning | |||||
| 12 | Mount for USB socket | 1 | 51169136586 | $2.06 | Shop at ECS Tuning | |||||
| 13 | Adapter | 1 | 51167077658 | $6.00 | Shop at ECS Tuning | |||||
| 14 | Center armrest tray | 1 | 51167114124 | $71.35 | Shop at ECS Tuning | |||||
| 15 | Rubber mat | 1 | 51167121999 | $4.97 | Shop at ECS Tuning | |||||
| 16 | Support for telephone | 1 | 51167060175 | $24.27 | Shop at ECS Tuning | |||||
| 17 | Fillister head screw | 4 | 07147122389 | $0.11 | Shop at ECS Tuning | |||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 18 | Blind plug, center armrest | GRAU | 1 | 51167139311 | $3.82 | ENDED | Shop at ECS Tuning | |||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 18 | Blind plug, center armrest | BEIGE | 1 | 51167139312 | $3.82 | Shop at ECS Tuning | ||||
| For vehicles with Leather filled napa "Skin"/amethyst or Leather filled napa "Skin"/schwarz |
LDRH=Yes LDSW=Yes |
|||||||||
| 18 | Blind plug, center armrest | SCHWARZ | 1 | 51167139310 | $3.82 | Shop at ECS Tuning | ||||
| 19 | Bracket, center console | 1 | 51167065517 | $7.05 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
