Armrest front for BMW 3 Series E30 M3 (1990)

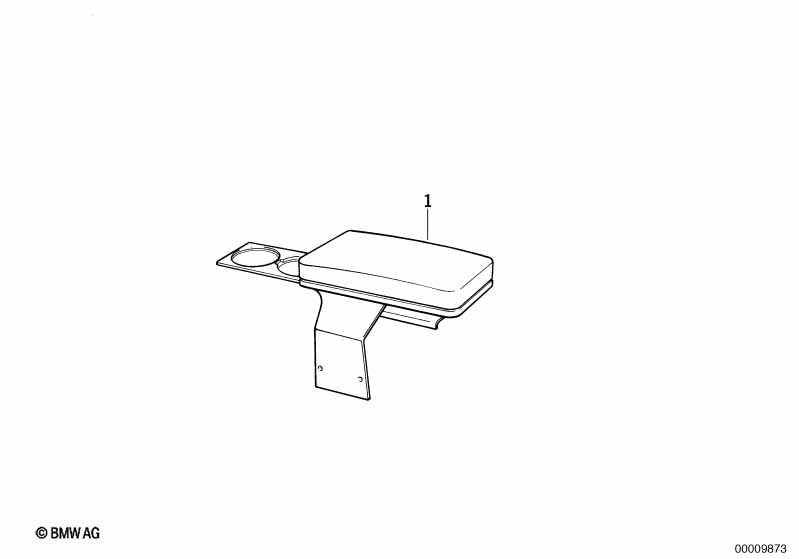

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Armrest front | 1 | 82119413202 | $302.33 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Armrest front?
- This technical diagram illustrates the Armrest front within the Retrofitting / conversion / accessories group for the 3 Series E30 M3 produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Armrest front (Part #82119413202).
- Which models use the hardware listed in this Armrest front?
- The hardware and components featured in the Armrest front are specific to the 3 Series E30 M3 produced during 1990. These technical specifications ensure that parts like the Armrest front (82119413202) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armrest front assembly?
- Each item in the Armrest front corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Armrest front by locating its position on the schematic, which then links to the official BMW part number 82119413202 for the Retrofitting / conversion / accessories section.
