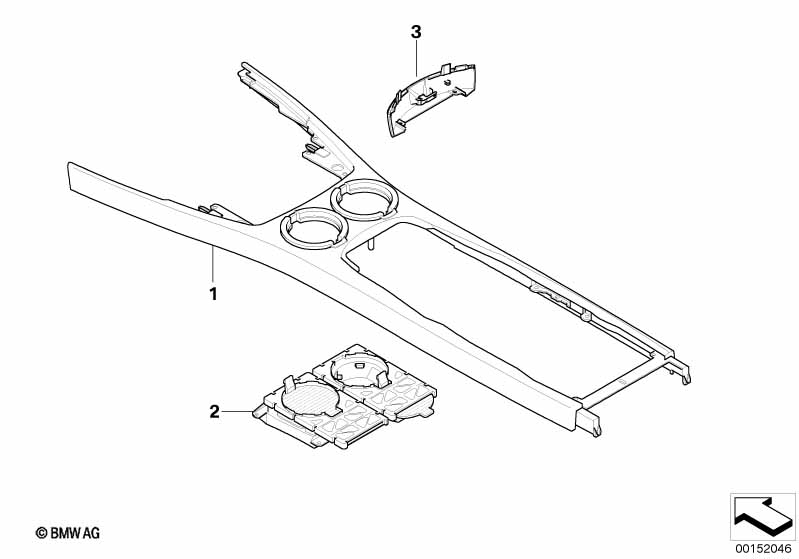

Cup holder retrofit, front for BMW 7 Series E65 730d (2005)
This Cup holder retrofit, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Nasca"/natural brown |
U6NG=Yes |
|||||||||
| 01 | Base of cup holder, center console | NACHTBLAU | 1 | 03/2005 | 51167070276 | $168.40 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Nasca"/stone-green |
U6GN=Yes |
|||||||||
| 01 | Base of cup holder, center console | BASALTGRAU | 1 | 03/2005 | 51167070275 | $188.60 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Nasca"/beige |
U6BA=Yes |
|||||||||
| 01 | Base of cup holder, center console | BEIGE | 1 | 51167070274 | $168.40 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "New Mind"/flanell-grau |
H5FA=Yes |
|||||||||
| 01 | Base of cup holder, center console | FLANELLGRAU | 1 | 51167070273 | $168.40 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nasca"/stone-green or All leather "Club", beige 3 |
U6GN=Yes U7BA=Yes |
|||||||||
| 01 | Base of cup holder, center console | BASALTGRAU | 1 | 03/2005 | 51167070280 | $729.21 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Nasca"/natural brown or 100% Leather "Club"/nautic-grün |
U6NG=Yes U7NG=Yes |
|||||||||
| 01 | Base of cup holder, center console | NACHTBLAU | 1 | 03/2005 | 51167070281 | $729.21 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cup holder and Leather "Nasca"/beige |
S442A=Yes U6BA=Yes |
|||||||||
| 01 | Base of cup holder, center console | BEIGE | 1 | 51167070279 | $729.21 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cup holder and Leather "Nasca"/flanell-grau or 100% Leather "Club"/flanellgrau |
S442A=Yes U6FA=Yes U7FA=Yes |
|||||||||
| 01 | Base of cup holder, center console | FLANELLGRAU | 1 | 51167070278 | $729.21 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric "New Mind"/anthracite or Fabric "New Mind"/kaschmir-braun or Leather "Nasca"/black |
H5AT=Yes H5KB=Yes U6SW=Yes |
|||||||||
| 01 | Base of cup holder, center console | SCHWARZ | 1 | 51167070272 | $168.40 | Shop at ECS Tuning | ||||
| For vehicles with Cup holder and Leather "Nasca"/cream-beige or 100% Leather "Club"/cream-beige or 100% Leather "Club"/black |
S442A=Yes U6GE=Yes U7GE=Yes U7SW=Yes |
|||||||||
| 01 | Base of cup holder, center console | SCHWARZ | 1 | 51167070277 | $729.21 | ENDED | Shop at ECS Tuning | |||
| 02 | Cup holder, center console | DARK SILVER | 1 | 03/2005 | 51167022816 | $92.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cup holder |
S442A=Yes |
|||||||||
| 03 | Cover, center armrest, front | DARK SILVER | 1 | 51167070551 | $19.86 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
