Retrofit, sun blind, electric for BMW 5 Series E34 525tds (1995)

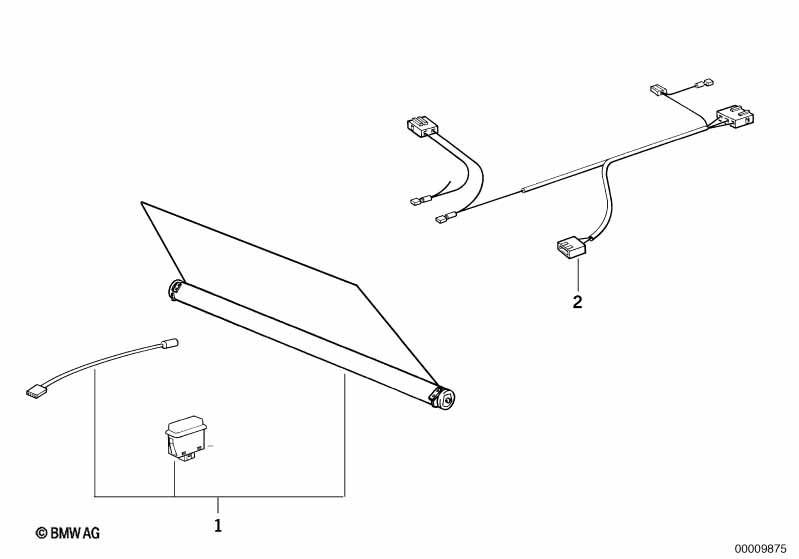

This Retrofit, sun blind, electric technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FOR MODIFICATION PLS SEE TABLE |
||||||||||
| 01 | Supplementary set sun blind electr. | 1 | 51469060596 | $668.00 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wiring sun blind | 1 | 61129402134 | ENDED | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH REAR WINDOW SHELF SWITCH COVERING |
||||||||||
| 02 | Wiring sun blind | 1 | 61129402134 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525tds Retrofit, sun blind, electric?
- This technical diagram illustrates the Retrofit, sun blind, electric within the Retrofitting / conversion / accessories group for the 5 Series E34 525tds produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Supplementary set sun blind electr. (Part #51469060596).
- Which models use the hardware listed in this Retrofit, sun blind, electric?
- The hardware and components featured in the Retrofit, sun blind, electric are specific to the 5 Series E34 525tds produced during 1995. These technical specifications ensure that parts like the Supplementary set sun blind electr. (51469060596) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, sun blind, electric assembly?
- Each item in the Retrofit, sun blind, electric corresponds to the numbered list below the illustration. For the 5 Series E34 525tds, you can identify the Supplementary set sun blind electr. by locating its position on the schematic, which then links to the official BMW part number 51469060596 for the Retrofitting / conversion / accessories section.
