Roller sun shield for BMW 5 Series E34 530i (1995)

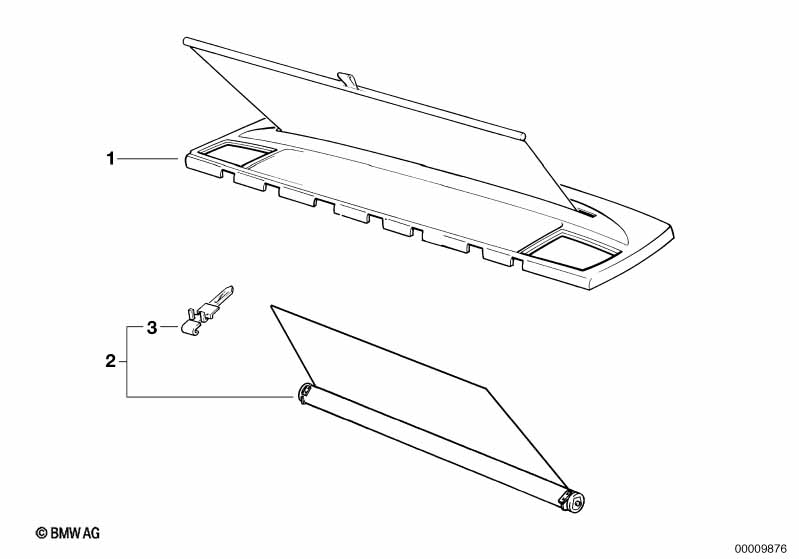

This Roller sun shield technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 02 | Supplementary set sun blind | 1 | 09/1989 | 51169401882 | $308.02 | ENDED | Shop at ECS Tuning | |||

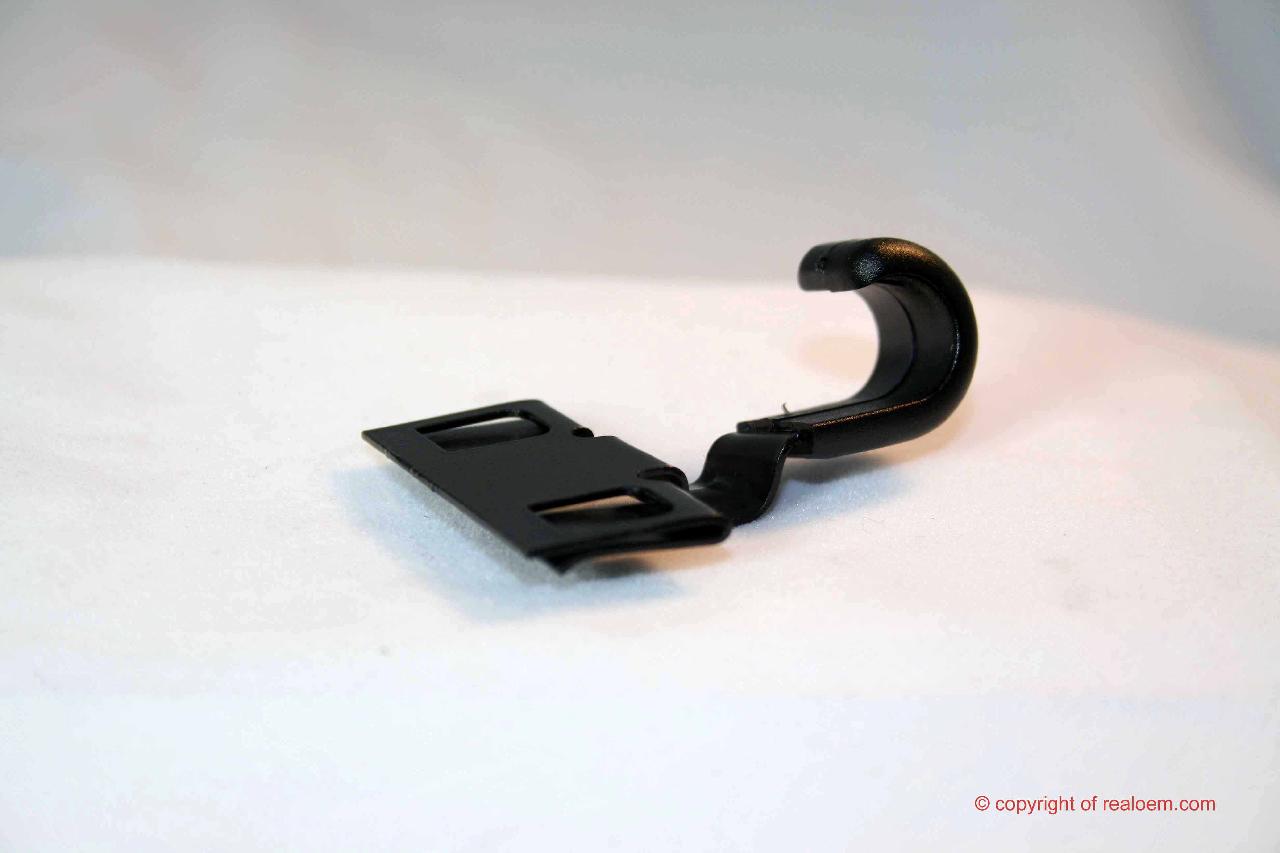

| 03 | Hook left | SCHWARZ | 1 | 09/1989 | 51461978981 | $6.72 | Shop at ECS Tuning | |||

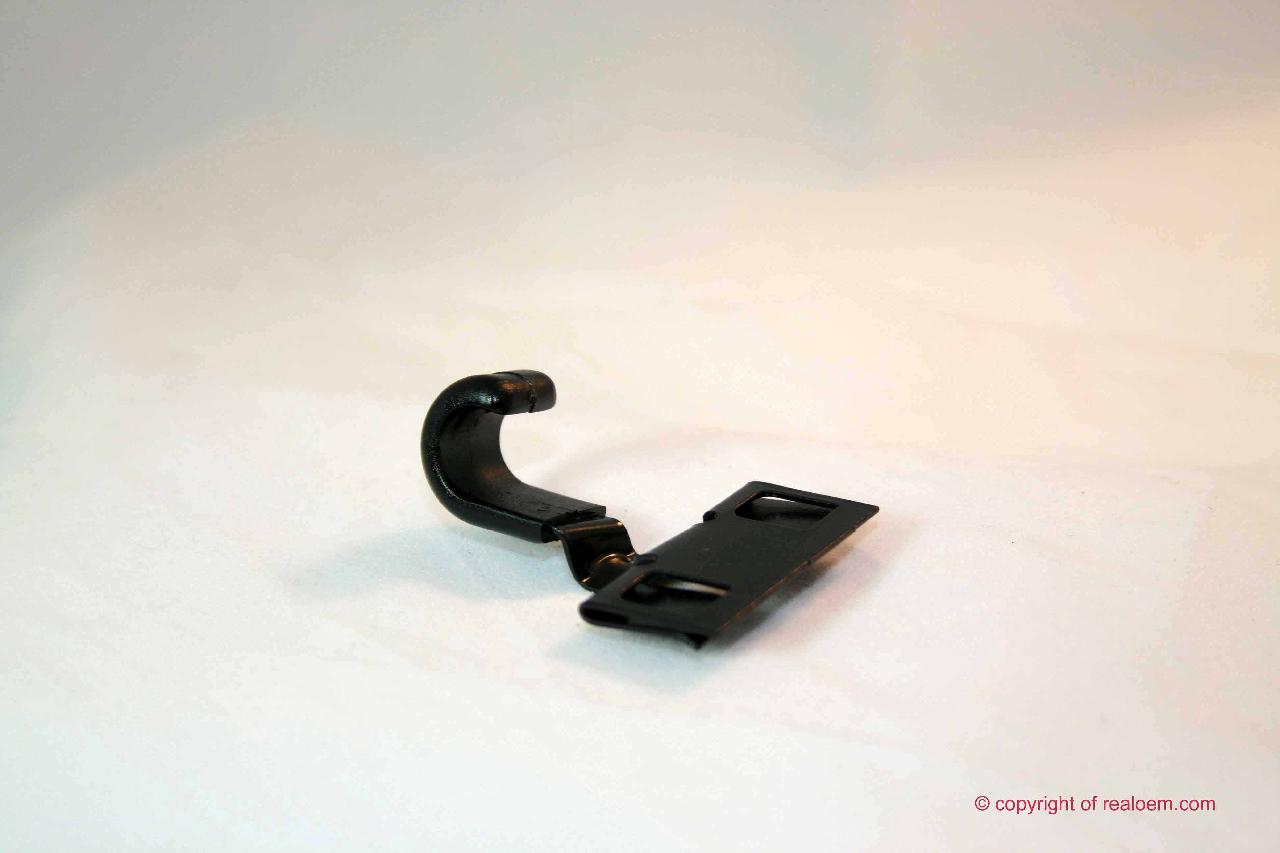

| 03 | Hook right | SCHWARZ | 1 | 09/1989 | 51461978982 | $6.72 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
