Sun visor rear door for BMW 3 Series E46 330d (2003)

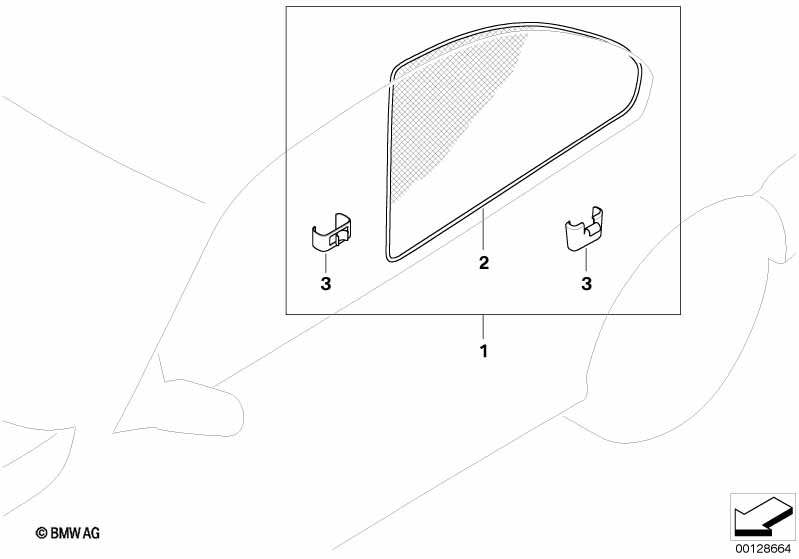

This Sun visor rear door technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Installation instructions available via Electronic Parts Catalog |
|||||||||
| 01 | Set sun visor | E46/4 | 1 | 51460004485 | $209.95 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Rear left sun visor | 1 | 51460004486 | $23.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Rear right sun visor | 1 | 51460004487 | $23.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Holder kit for sun visor | 1 | 51460303334 | $41.00 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Sun visor rear door?
- This technical diagram illustrates the Sun visor rear door within the Retrofitting / conversion / accessories group for the 3 Series E46 330d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Set sun visor (Part #51460004485).
- Which models use the hardware listed in this Sun visor rear door?
- The hardware and components featured in the Sun visor rear door are specific to the 3 Series E46 330d produced during 2003. These technical specifications ensure that parts like the Set sun visor (51460004485) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sun visor rear door assembly?
- Each item in the Sun visor rear door corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Set sun visor by locating its position on the schematic, which then links to the official BMW part number 51460004485 for the Retrofitting / conversion / accessories section.
