Sunshade for BMW 3 Series E91 LCI 325xi (2012)

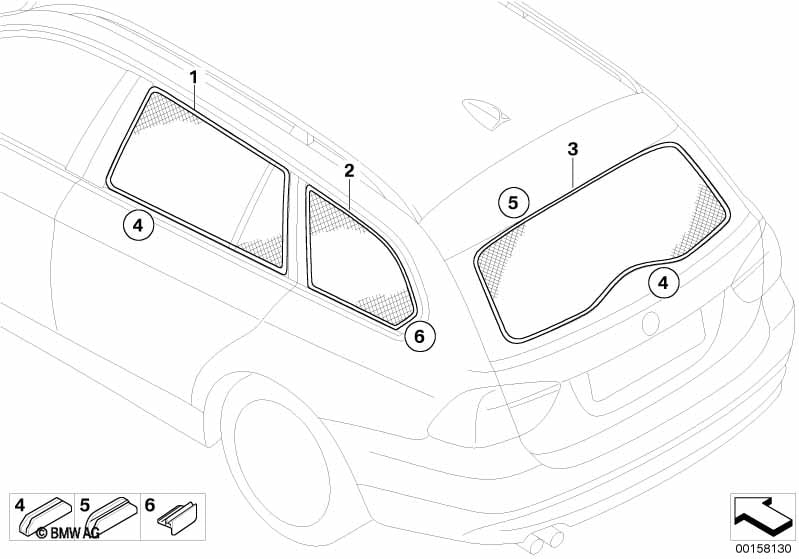

This Sunshade technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| For vehicles with Roller sun vizor, rear door |
S417A=No |
|||||||||
| 01 | Sun blind, side windows | 1 | 51400406864 | $149.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rear side windows sun blind | 1 | 51400406865 | $149.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Sunshade rear window | 1 | 51400406863 | $149.95 | ENDED | Shop at ECS Tuning | ||||
| Spare part | ||||||||||
| 04 | U-bracket, frame | 1 | 51460412110 | $3.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | U-bracket, window | 1 | 51460412109 | $3.50 | ENDED | Shop at ECS Tuning | ||||
| 06 | L-bracket | 1 | 51460412111 | $1.50 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
