Retrofit, cup holder for BMW 1 Series E87 LCI 123d (2011)

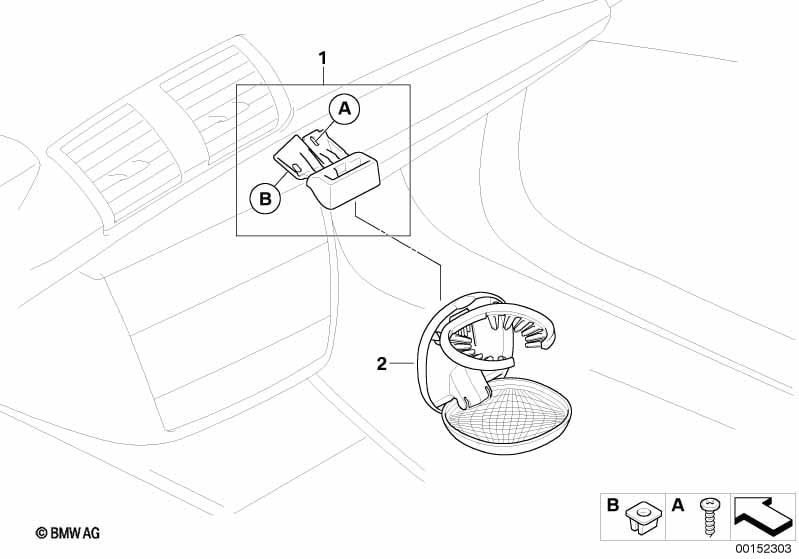

This Retrofit, cup holder technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fine-wood trim walnut light and not assigned |
S4A3A=No SZFEA=No |
||||||||
| 01 | Holder | LHD | 1 | 03/2007 | 51160433205 | $14.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Cup holder | 1 | 51160391637 | $44.75 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 123d Retrofit, cup holder?
- This technical diagram illustrates the Retrofit, cup holder within the Retrofitting / conversion / accessories group for the 1 Series E87 LCI 123d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Holder (Part #51160433205).
- Which models use the hardware listed in this Retrofit, cup holder?
- The hardware and components featured in the Retrofit, cup holder are specific to the 1 Series E87 LCI 123d produced during 2011. These technical specifications ensure that parts like the Holder (51160433205) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, cup holder assembly?
- Each item in the Retrofit, cup holder corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 123d, you can identify the Holder by locating its position on the schematic, which then links to the official BMW part number 51160433205 for the Retrofitting / conversion / accessories section.
