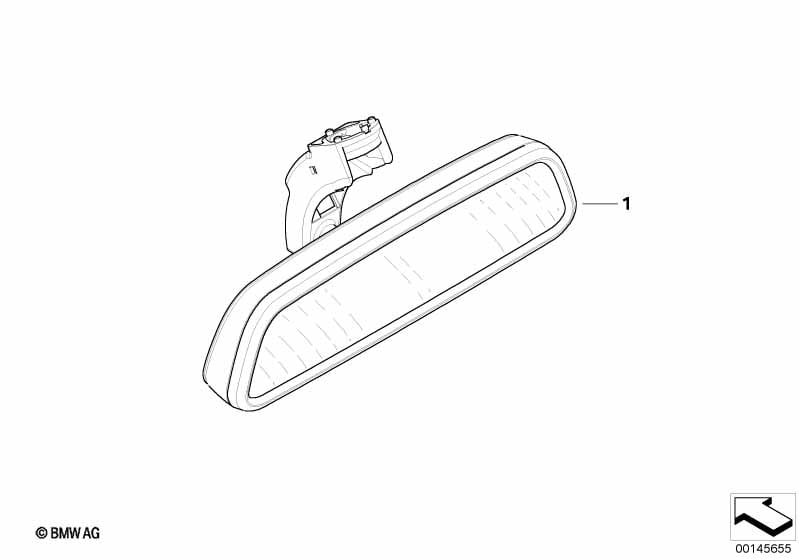

Retrofit: Compass/Remote control for BMW 3 Series E91 330i (2008)
This Retrofit: Compass/Remote control technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Interior/outside mirror with auto dip or Interior mirror with automatic-dip |
S430A=Yes S431A=Yes |
||||||||
| For vehicles with High-beam assistant |
S5ACA=No |
|||||||||
| 01 | Rearview mirror EC / LED / Compass | 1 | 51169192333 | $666.73 | Shop at ECS Tuning | |||||
| For vehicles with High-beam assistant |
S5ACA=Yes |
|||||||||
| 01 | Rearview mirror EC / LED / GTO / Compass | 1 | 51169192334 | Shop at ECS Tuning | ||||||
| 01 | Rearview mirror EC / LED / Compass | 1 | 09/2006 | 51169192333 | $666.73 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 330i Retrofit: Compass/Remote control?
- This technical diagram illustrates the Retrofit: Compass/Remote control within the Retrofitting / conversion / accessories group for the 3 Series E91 330i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Rearview mirror EC / LED / Compass (Part #51169192333).
- Which models use the hardware listed in this Retrofit: Compass/Remote control?
- The hardware and components featured in the Retrofit: Compass/Remote control are specific to the 3 Series E91 330i produced during 2008. These technical specifications ensure that parts like the Rearview mirror EC / LED / Compass (51169192333) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit: Compass/Remote control assembly?
- Each item in the Retrofit: Compass/Remote control corresponds to the numbered list below the illustration. For the 3 Series E91 330i, you can identify the Rearview mirror EC / LED / Compass by locating its position on the schematic, which then links to the official BMW part number 51169192333 for the Retrofitting / conversion / accessories section.
