Retrofit f oddments tray instr. panel for BMW 1 Series E82 118d (2013)

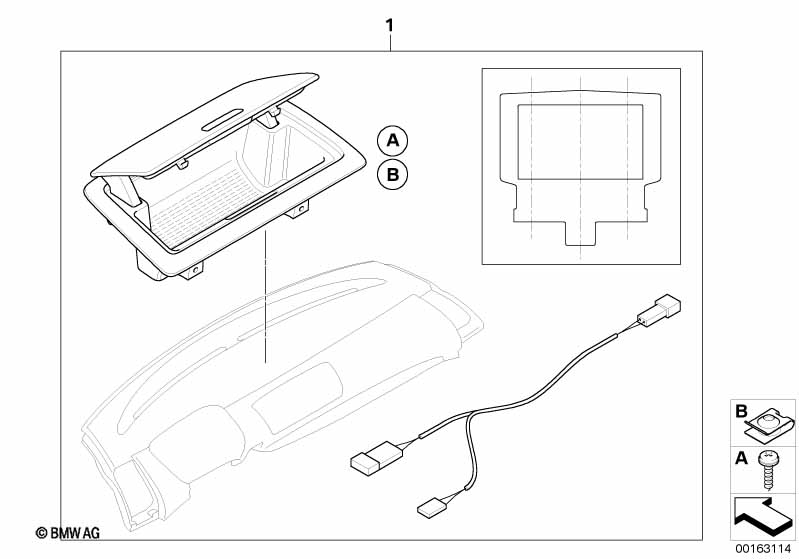

This Retrofit f oddments tray instr. panel technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Navigation system Business and Navigation system Professional |
S606A=No S609A=No |
|||||||||
| 01 | Retrofit kit, storage tray, I-panel, top | 1 | 51450428424 | $109.95 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
