License plate bracket, self-illuminated for BMW 5 Series E60 LCI 530d (2009)

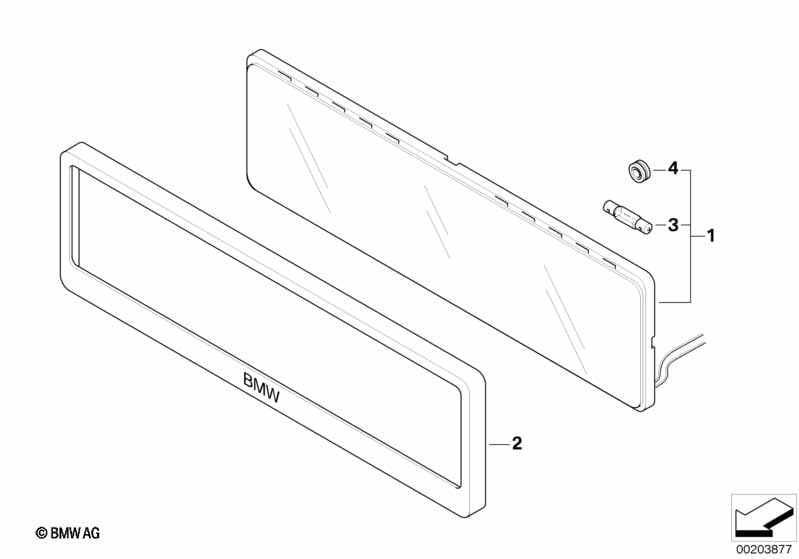

This License plate bracket, self-illuminated technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. For vehicles with National version Germany |
L801A=Yes |
||||||||
| 01 | License plate bracket, self-illuminated | 1 | 51130435440 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | License plate frame | BMW | 1 | 51130435441 | ENDED | Shop at ECS Tuning | ||||
| 02 | License plate frame | BMW | 1 | 51130435441 | ENDED | Shop at ECS Tuning | ||||
| 03 | Resistor | 2 | 51130435446 | ENDED | Shop at ECS Tuning | |||||
| 04 | Grommet | 1 | 51130435445 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
