Retrofit, floor net for BMW 3 Series E36 328i (1999)

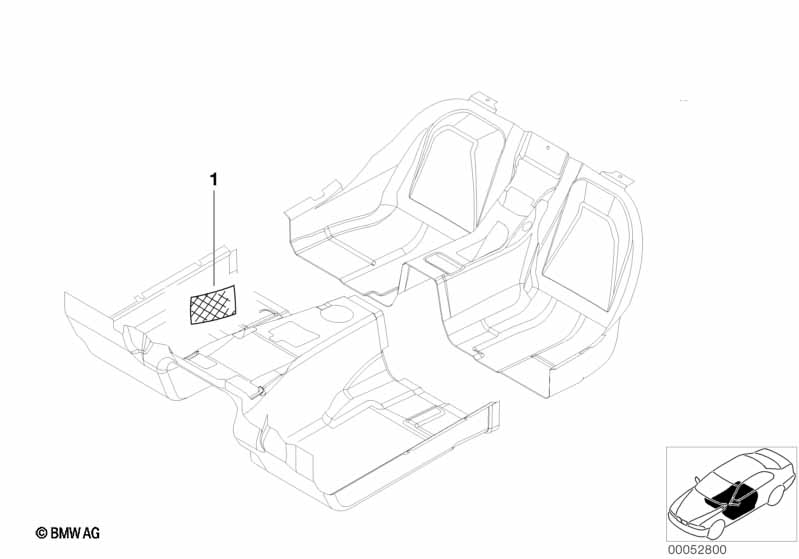

This Retrofit, floor net technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 0.25 hours, which may differ depending on the condition of the vehicle and the equipment in it. |
|||||||||
| 01 | Storage net, footwell, front | 1 | 51472261407 | $23.25 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fastening elements | 4 | 51472263062 | $0.50 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Retrofit, floor net?
- This technical diagram illustrates the Retrofit, floor net within the Retrofitting / conversion / accessories group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Storage net, footwell, front (Part #51472261407).
- Which models use the hardware listed in this Retrofit, floor net?
- The hardware and components featured in the Retrofit, floor net are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Storage net, footwell, front (51472261407) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, floor net assembly?
- Each item in the Retrofit, floor net corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Storage net, footwell, front by locating its position on the schematic, which then links to the official BMW part number 51472261407 for the Retrofitting / conversion / accessories section.
