Key fob for BMW 3 Series E90 LCI 320d (2011)

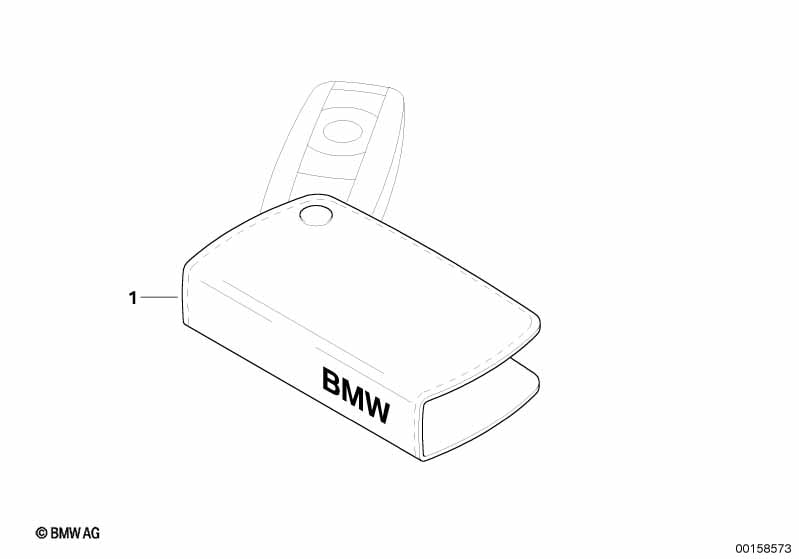

This Key fob technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Country-specific equipment Russia 10323 |
S8LRA=No |
||||||||
| 01 | Key fob | L2 | 1 | 51210414778 | $14.35 | Shop at ECS Tuning | ||||
| On follow-on order | ||||||||||
| 02 | Key fob with dealer advertising | L2 | 1 | 51210414779 | ENDED | Shop at ECS Tuning | ||||
| On initial order | ||||||||||
| 02 | Key fob with dealer advertising | L2 | 1 | 51210414779 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Price extra furnishing costs | 1 | 51210415036 | +core | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
