Side scuttle, large - F55, F56, F57 for BMW MINI F56 JCW (2017)

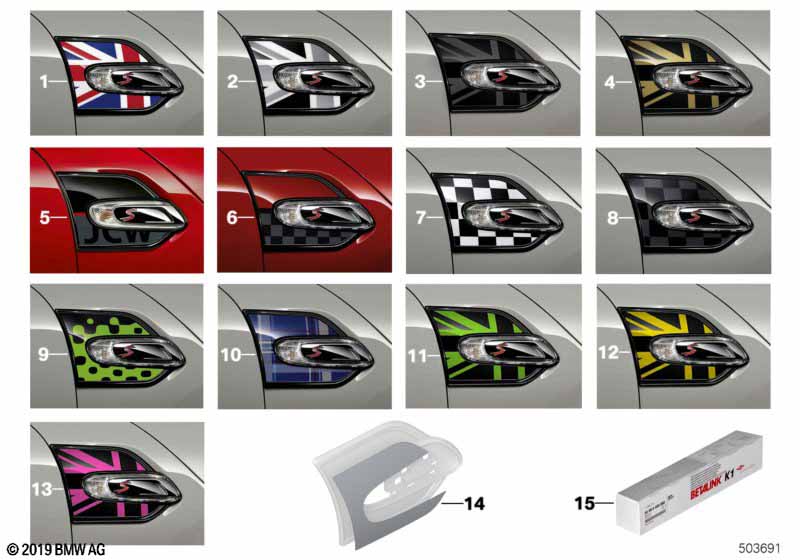

This Side scuttle, large - F55, F56, F57 technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Trim side panel | UNION JACK | 1 | 51142339313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim side panel | BLACK JACK | 1 | 51142347947 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim cover set with pad | NIGHT JACK | 1 | 51142459029 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim door sill | GOLD JACK | 1 | 51142352626 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 05 | Trim cover set with pad | JCW | 1 | 51132466563 | Shop at ECS Tuning | |||||
| 06 | Trim side panel | JCW CHEQUERED | 1 | 51142355377 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 07 | Trim side panel | CHECKERED BL/WH | 1 | 51142347948 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 08 | Trim side panel | CHECKERED BL/GR | 1 | 51142352625 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 09 | Trim side panel | VIVID GREEN | 1 | 51142355376 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 10 | Trim side panel | SPEEDWELL BLUE | 1 | 51142355379 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 11 | Trim side panel | MINI RAY GREEN | 1 | 51132410445 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 12 | Trim side panel | MINI RAY YELLOW | 1 | 51132410446 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 13 | Trim side panel | MINI RAY PINK | 1 | 51132410447 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 15 | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
