Side scuttle, small - F55, F56, F57 for BMW MINI F56 One (2021)

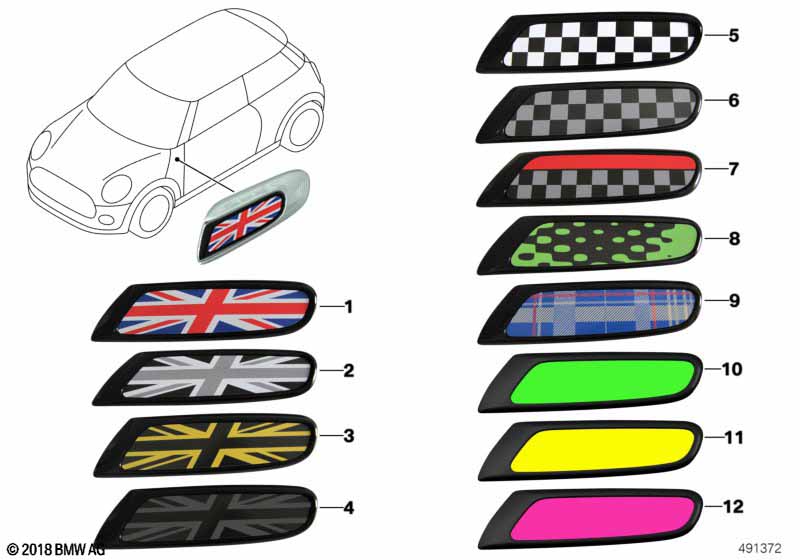

This Side scuttle, small - F55, F56, F57 technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China |
L8AAA=No |
||||||||
| 01 | Trim side panel | UNION JACK | 1 | 51132410448 | Shop at ECS Tuning | |||||
| 02 | Trim side panel | BLACK JACK | 1 | 51132410449 | Shop at ECS Tuning | |||||
| 03 | Trim side panel | GOLD JACK | 1 | 51132410450 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trim cover set with pad | NIGHT JACK | 1 | 51142459030 | Shop at ECS Tuning | |||||
| 05 | Trim side panel | CHECKERED B/W | 1 | 51132410452 | Shop at ECS Tuning | |||||
| 06 | Trim side panel | CHECKERED B/G | 1 | 51132410453 | Shop at ECS Tuning | |||||
| 07 | Trim cover set with pad | JCW CHEQUERED | 1 | 51132410456 | ENDED | Shop at ECS Tuning | ||||
| 08 | Trim side panel | VIVID GREEN | 1 | 51132410454 | ENDED | Shop at ECS Tuning | ||||
| 09 | Trim side panel | SPEEDWELL BLUE | 1 | 51132410455 | ENDED | Shop at ECS Tuning | ||||
| 10 | Trim side panel | MINI RAY GREEN | 1 | 51132410457 | ENDED | Shop at ECS Tuning | ||||
| 11 | Trim side panel | MINI RAY YELLOW | 1 | 51132410458 | ENDED | Shop at ECS Tuning | ||||
| 12 | Trim side panel | MINI RAY PINK | 1 | 51132410459 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 One Side scuttle, small - F55, F56, F57?
- This technical diagram illustrates the Side scuttle, small - F55, F56, F57 within the Retrofitting / conversion / accessories group for the MINI F56 One produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Trim side panel (Part #51132410448).
- Which models use the hardware listed in this Side scuttle, small - F55, F56, F57?
- The hardware and components featured in the Side scuttle, small - F55, F56, F57 are specific to the MINI F56 One produced during 2021. These technical specifications ensure that parts like the Trim side panel (51132410448) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side scuttle, small - F55, F56, F57 assembly?
- Each item in the Side scuttle, small - F55, F56, F57 corresponds to the numbered list below the illustration. For the MINI F56 One, you can identify the Trim side panel by locating its position on the schematic, which then links to the official BMW part number 51132410448 for the Retrofitting / conversion / accessories section.
