Coolbox for BMW 5 Series F18 LCI 528Li (2016)

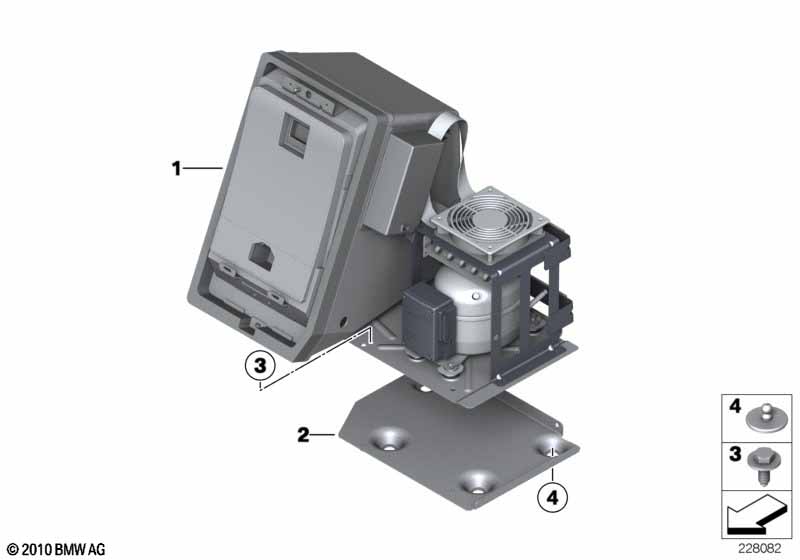

This Coolbox technical drawing provides a detailed breakdown of the assembly for the 5 Series F18 LCI 528Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Coolbox | 1 | 64117842916 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Coolbox | 1 | 64112452657 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 02 | Retainer for cooler | 1 | 64117842918 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 02 | Retainer for cooler | 1 | 64112452658 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M6X18-U2-ZNS3 | 4 | 07119902933 | Shop at ECS Tuning | |||||
| 04 | Ball pin | 4 | 64117903928 | Shop at ECS Tuning | ||||||
