Retrofit kit solar-powered ventilation for BMW 3 Series E46 323Ci (2000)

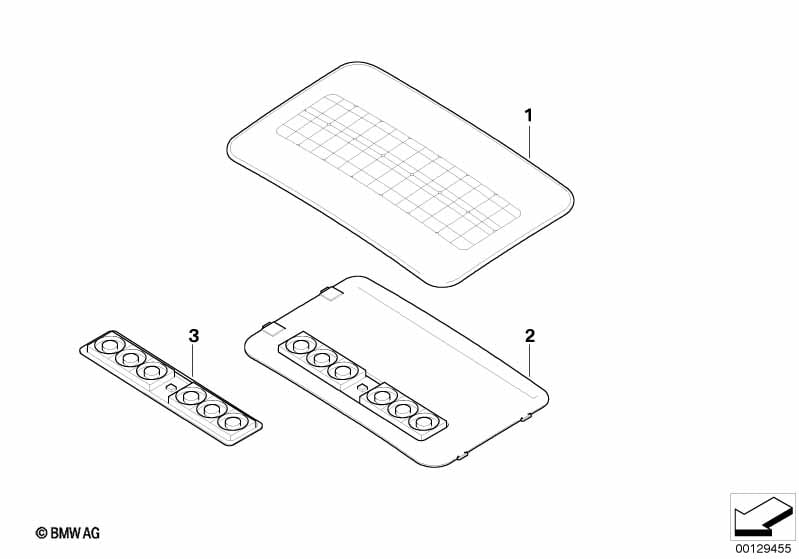

This Retrofit kit solar-powered ventilation technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. Not suitable for China and Hong Kong market |
|||||||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 01 | Solar glass cover sliding/tilting roof | 1 | 54130302926 | $545.62 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with matching headlining frame covered velour with fan |
||||||||||
| 02 | Headlining frame w. velour cover and fan | ANTHRAZIT | 1 | 54130302928 | $205.95 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Headlining frame w. velour cover and fan | HELLGRAU | 1 | 54130302929 | $205.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Headlining frame w. velour cover and fan | HELLBEIGE | 1 | 54130302930 | $205.95 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
