Air conditioning system R134A for BMW 3 Series E36 318is (1996)

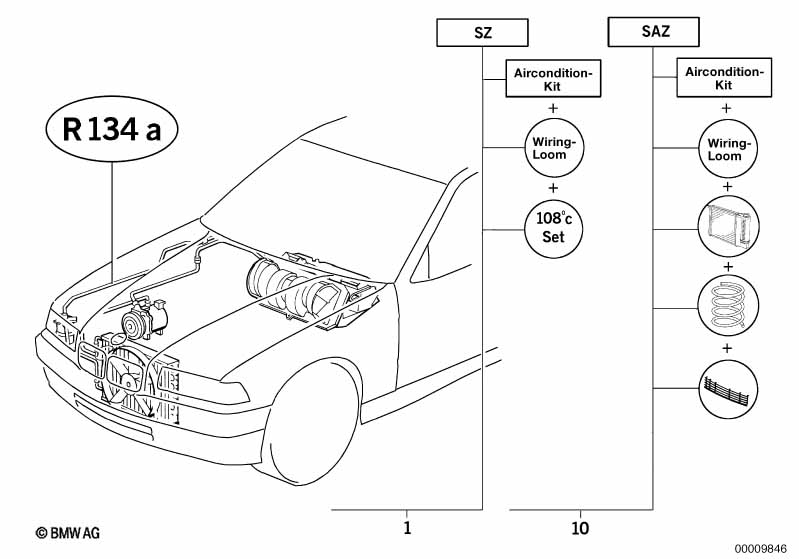

This Air conditioning system R134A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| ONLY APPLIES TO KSK + SA 848 ONLY APPLIES TO KSK WITHOUT SA 848 |
||||||||||
| 01 | Installing set automatic air conditioner | R134A | 1 | 09/1993 | 64509405071 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Installing set 108 C | 1 | 09/1993 | 64519401992 | ENDED | Shop at ECS Tuning | ||||
| OPEN GRID | ||||||||||
| -- | Wiring for air conditioner | 1 | 09/1993 | 61129402715 | $222.08 | Shop at ECS Tuning | ||||
| OPEN GRID | ||||||||||
| 10 | Installing set automatic air conditioner | R134A | 1 | 09/1993 | 64509405071 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Wiring for air conditioner | 1 | 09/1993 | 61129402715 | $222.08 | Shop at ECS Tuning | ||||
| COIL SPRING FAN SHROUD RADIATOR OPEN GRID |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Air conditioning system R134A?
- This technical diagram illustrates the Air conditioning system R134A within the Retrofitting / conversion / accessories group for the 3 Series E36 318is produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Installing set automatic air conditioner (Part #64509405071).
- Which models use the hardware listed in this Air conditioning system R134A?
- The hardware and components featured in the Air conditioning system R134A are specific to the 3 Series E36 318is produced during 1996. These technical specifications ensure that parts like the Installing set automatic air conditioner (64509405071) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air conditioning system R134A assembly?
- Each item in the Air conditioning system R134A corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Installing set automatic air conditioner by locating its position on the schematic, which then links to the official BMW part number 64509405071 for the Retrofitting / conversion / accessories section.
