Air conditioning system R134A for BMW 5 Series E34 525ix (1996)

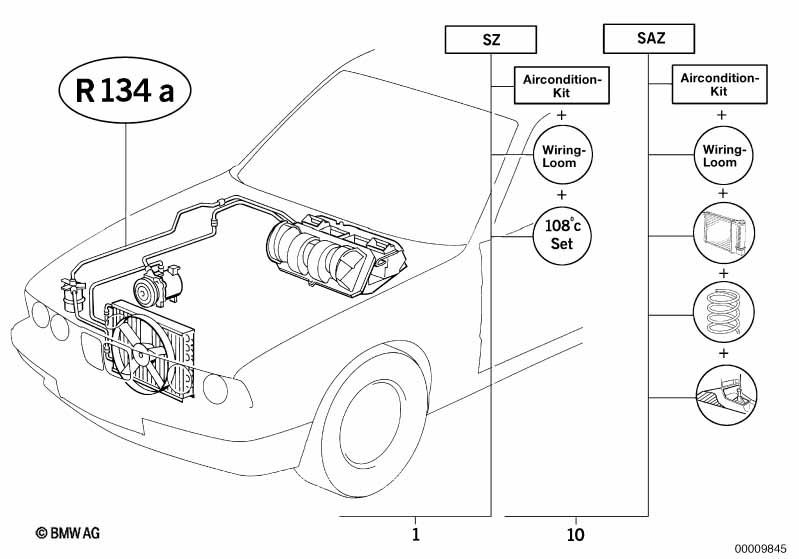

This Air conditioning system R134A technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| ONLY APPLIES TO CABLE HARNESS SECTOR FRONT WITH 12-POLE PLUG AND SOCKET |
||||||||||
| 01 | Installing set automatic air conditioner | R134A | 1 | 09/1990 | 64509401676 | $5178.24 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Installing set air conditioning | R134A | 1 | 09/1990 | 64509401677 | $6294.24 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Pipe-dryer pressure hose | R134A | 1 | 09/1990 | 64538390980 | Shop at ECS Tuning | ||||
| -- | Installing set 108 C | 1 | 09/1990 | 64519401999 | ENDED | Shop at ECS Tuning | ||||
| -- | Wiring for air conditioner | 1 | 09/1990 | 61128355164 | $200.88 | ENDED | Shop at ECS Tuning | |||
| 10 | Installing set automatic air conditioner | R134A | 1 | 09/1990 | 64509401676 | $5178.24 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 10 | Installing set air conditioning | R134A | 1 | 09/1990 | 64509401677 | $6294.24 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Pipe-dryer pressure hose | R134A | 1 | 09/1990 | 64538390980 | Shop at ECS Tuning | ||||
| RADIATOR FAN SHROUD COIL SPRING STORING PARTITION LATER. TRIM PANEL LEFT STORING PARTITION LAT. TRIM PANEL RIGHT |
||||||||||
| -- | Wiring for air conditioner | 1 | 09/1990 | 61128355164 | $200.88 | ENDED | Shop at ECS Tuning | |||
| RADIATOR FAN SHROUD COIL SPRING STORING PARTITION LATER. TRIM PANEL LEFT STORING PARTITION LAT. TRIM PANEL RIGHT |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
