"Economic"air cond. syst. single parts I for BMW 3 Series E36 325tds (1994)

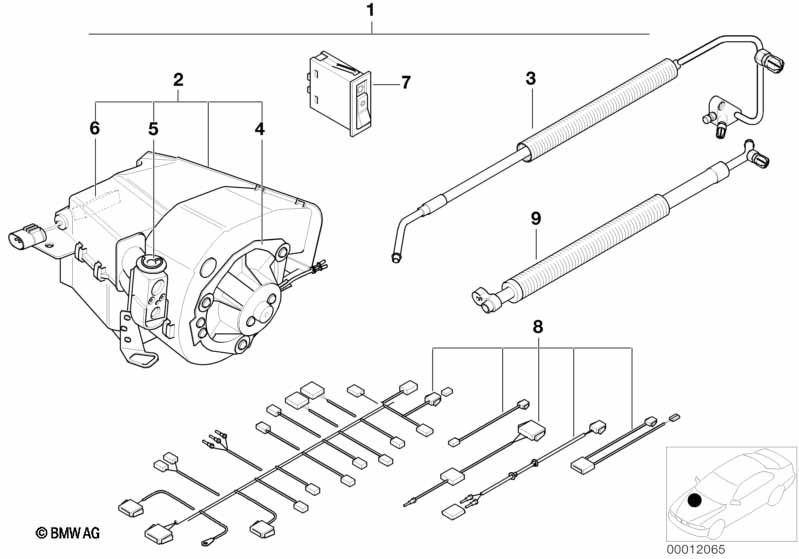

This "Economic"air cond. syst. single parts I technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Caution, vehicle must have opened gate! All other parts correspond to standard parts which where installed up to 05/97. |
|||||||||
| 01 | Economic air-con. system, complete | E36 M51(325TDS) | 1 | 05/1993 | 12/1995 | 64509409055 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Evaporator | SSG KLIMA | 1 | 64519407630 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pressure hose assy | SSG KLIMA | 1 | 64509405636 | $221.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Blower unit | SSG KLIMA | 1 | 64519407667 | ENDED | Shop at ECS Tuning | ||||
| 05 | Expansion valve | ECONOMIC | 1 | 64519407652 | ENDED | Shop at ECS Tuning | ||||
| 07 | Switch air conditioning | 1 | 61319404048 | Shop at ECS Tuning | ||||||
| 08 | Wiring for air conditioner | E36 DIESEL | 1 | 61129408287 | ENDED | Shop at ECS Tuning | ||||
| 09 | Suction pipe | SSG E36 KLIMA | 1 | 05/1993 | 12/1995 | 64509405082 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
