"Economic" air cond. system single parts for BMW 5 Series E39 525tds (2000)

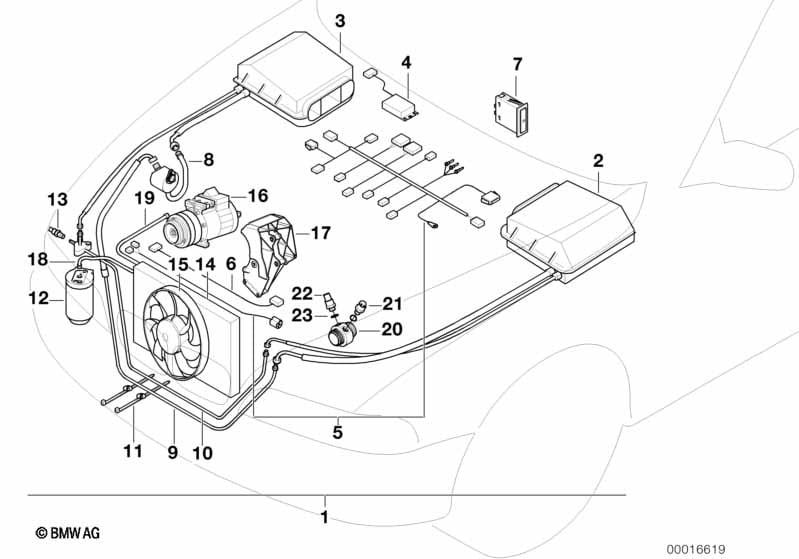

This "Economic" air cond. system single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cpmpl.vaporizer housing,left | SSG KLIMA | 1 | 64519404031 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Cpmpl.vaporizer housing,right | SSG KLIMA | 1 | 64519404032 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Air conditioner control module | 1 | 61359404037 | ENDED | Shop at ECS Tuning | |||||
| 05 | Wiring for air conditioner | E39 LHD/RHD | 1 | 61119405996 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adapter lead | 1 | 61129407910 | ENDED | Shop at ECS Tuning | |||||
| 07 | Switch air conditioning | 1 | 61319403112 | ENDED, +core | Shop at ECS Tuning | |||||
| 08 | Compressor suction connection | SSG-KLIMA | 1 | 64539407954 | ENDED | Shop at ECS Tuning | ||||
| 09 | Suction pipe | SSG-KLIMA | 1 | 64539407955 | ENDED | Shop at ECS Tuning | ||||
| 10 | Pressure hose assy | SSG-KLIMA | 1 | 64539407956 | ENDED | Shop at ECS Tuning | ||||
| 11 | Fastening tie | SSG KLIMA | 6 | 61139408771 | Shop at ECS Tuning | |||||
| 12 | Drying container | 1 | 64538372979 | $217.53 | ENDED | Shop at ECS Tuning | ||||
| 13 | Safety pressure switch | 1 | 64538391639 | $111.38 | +core | Shop at ECS Tuning | ||||
| 14 | Condenser | 1 | 64538391647 | $540.42 | Shop at ECS Tuning | |||||
| 15 | Pusher fan | 1 | 64548380780 | $374.55 | Shop at ECS Tuning | |||||
| 16 | Air conditioning compressor | 1 | 64526914369 | $1104.22 | ENDED | Shop at ECS Tuning | ||||
| 17 | Climate compressor supporting bracket | 1 | 64552246146 | Shop at ECS Tuning | ||||||
| 18 | Condenser-dryer pressure hose assy | 1 | 64538391791 | Shop at ECS Tuning | ||||||
| 19 | Pressure hose assy compressor-condenser | 1 | 64538370725 | $97.37 | Shop at ECS Tuning | |||||
| 20 | Hose connector 108 C | 1 | 17129401998 | ENDED | Shop at ECS Tuning | |||||
| 21 | Double temperature switch | 91/99CEL | 1 | 61318363677 | $32.46 | Shop at ECS Tuning | ||||
| 22 | Temperature switch 108 C | 1 | 61319401973 | $22.21 | Shop at ECS Tuning | |||||
| 23 | Gasket ring | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
