Labels independent heating for BMW 5 Series E60 530xi (2007)

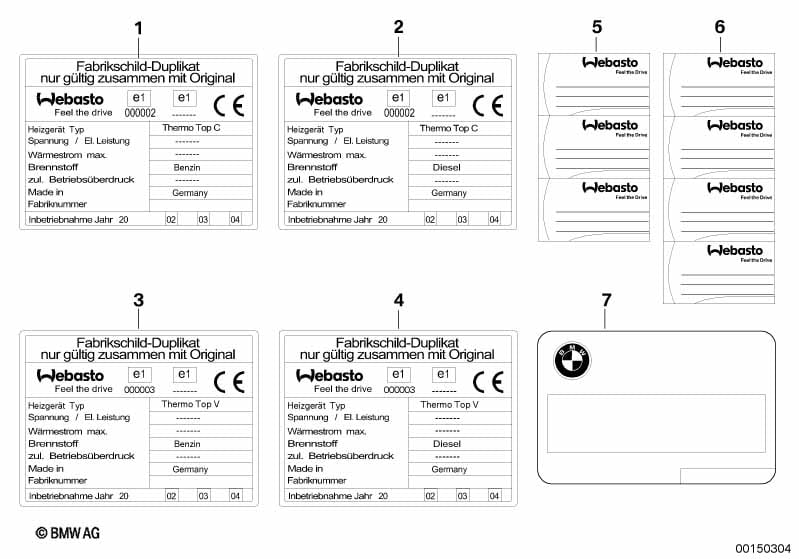

This Labels independent heating technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Duplicate type plate and tank information sticker acc. to EC directive valid for retrofit heating bracket |
|||||||||
| 01 | Duplicate plate | 1 | 03/1999 | 64126947113 | ENDED | Shop at ECS Tuning | ||||
| only valid for heating unit type Thermo Top C Gasoline |
||||||||||
| 01 | Duplicate plate | 1 | 03/1999 | 64129116617 | ENDED | Shop at ECS Tuning | ||||
| only valid for heating unit type Thermo Top C Gasoline |
||||||||||
| 01 | Duplicate plate | 1 | 03/1999 | 71239209756 | Shop at ECS Tuning | |||||
| only valid for heating unit type Thermo Top C Gasoline |
||||||||||
| 07 | Tank information label | SV | 1 | 09/2009 | 64126955188 | ENDED | Shop at ECS Tuning | |||
| 07 | Tank information label | SV | 1 | 11/2009 | 71239215934 | ENDED | Shop at ECS Tuning | |||
| 07 | Tank information label | SV | 1 | 71239230081 | Shop at ECS Tuning | |||||
| 07 | Tank information label | DE, EN | 1 | 64126955187 | $4.05 | Shop at ECS Tuning | ||||
| 07 | Tank information label | FR | 1 | 64126955189 | Shop at ECS Tuning | |||||
| 07 | Tank information label | IT | 1 | 64126955190 | Shop at ECS Tuning | |||||
| 07 | Tank information label | NL | 1 | 64126955191 | Shop at ECS Tuning | |||||
| 07 | Tank information label | DK | 1 | 64126955192 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
