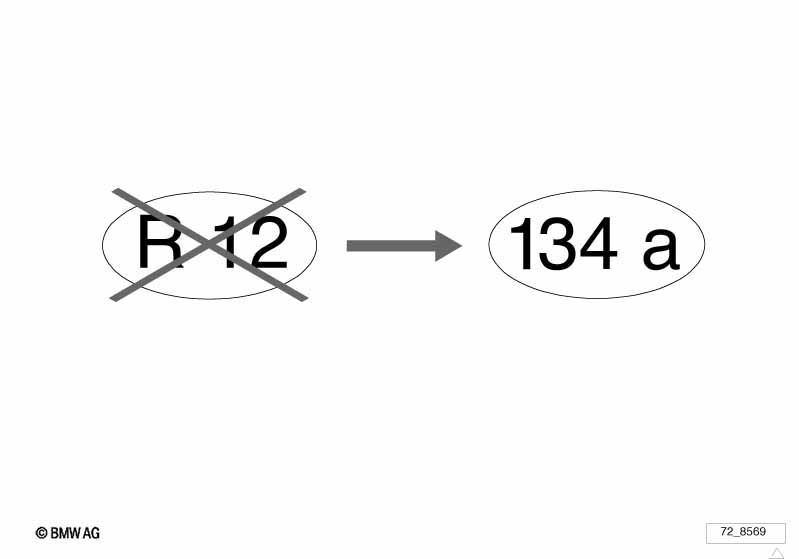

Retrofit kit R12 -> R134A for BMW 6 Series E24 628CSi (1987)
This Retrofit kit R12 -> R134A technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit kit R12 -> R134A | 1 | 02/1986 | 82319067398 | $396.26 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO AUC | ||||||||||
| 01 | Air conditioning compressor | R134A | 1 | 64528385712 | $799.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wiring magnetic clutch | 1 | 64521386224 | $17.47 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
