Front PDC upgrade for BMW 3 Series E90 LCI 325i (2011)

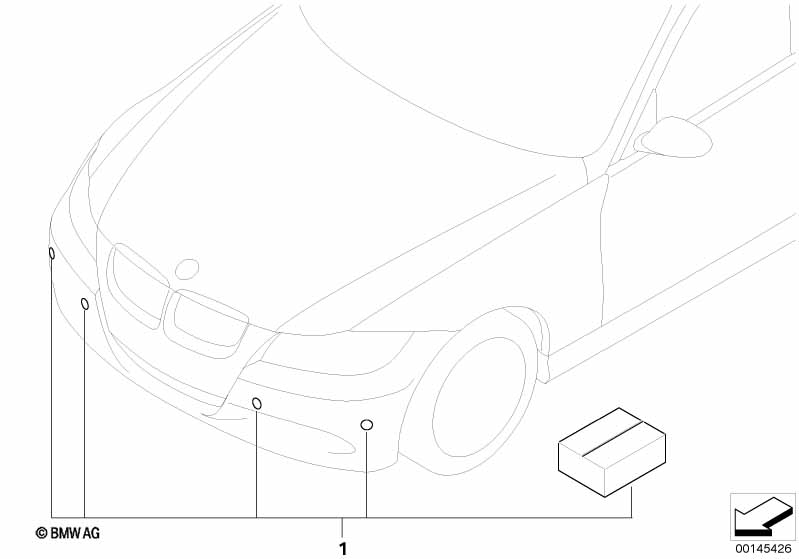

This Front PDC upgrade technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Not suitable for Sport Package Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit cable set, PDC front | 1 | 61120401223 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter PDC speaker | 1 | 66216938079 | $2.00 | Shop at ECS Tuning | |||||
| only in conjunction w/PDC control module additionally required parts: Switch unit, center console |
||||||||||
| -- | Ultrasonic sensor, color code | 4 | 66202180146 | Shop at ECS Tuning | ||||||
| only in conjunction w/PDC control module additionally required parts: Switch unit, center console |
||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| only in conjunction w/PDC control module additionally required parts: Switch unit, center console |
||||||||||
| -- | Trigger contact PDC | 1 | 66206969139 | $51.68 | Shop at ECS Tuning | |||||
| only in conjunction w/PDC control module additionally required parts: Switch unit, center console |
||||||||||
| -- | Cover | 1 | 51459120979 | $25.22 | +core | Shop at ECS Tuning | ||||
| only in conjunction w/PDC control module additionally required parts: Switch unit, center console |
||||||||||
| -- | Set of mounts for PDC sensor, front | 1 | 51117213857 | $16.65 | Shop at ECS Tuning | |||||
| only in conjunction w/PDC control module additionally required parts: Switch unit, center console |
||||||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
