Retrofit kit PDC, rear for BMW MINI F56 One (2021)

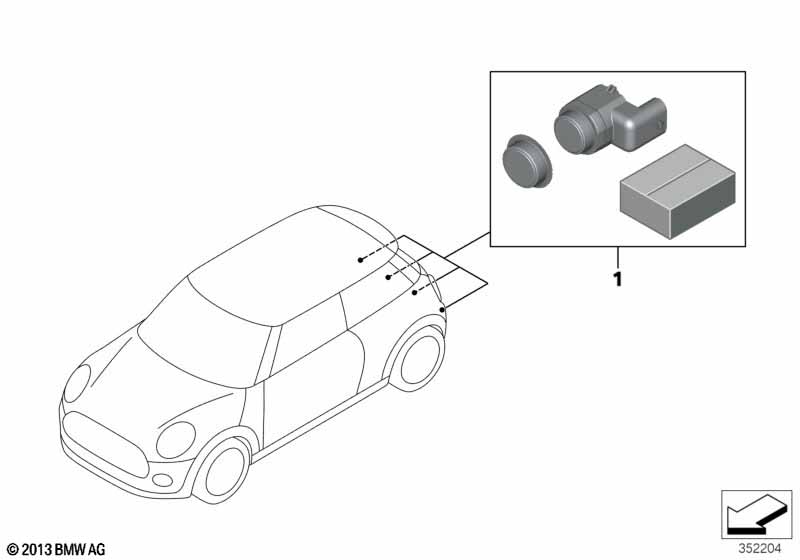

This Retrofit kit PDC, rear technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. The trim with the PDC mount is not included in the retrofit kit and must be ordered separately. |
|||||||||
| additionally required parts: Ultrasonic converter Control unit, PDC Black band, lower rear Black band, rear right Black band, rear left |
||||||||||
| 01 | Retrofit kit PDC, rear | 1 | 66202287371 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83192317925 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 One Retrofit kit PDC, rear?
- This technical diagram illustrates the Retrofit kit PDC, rear within the Retrofitting / conversion / accessories group for the MINI F56 One produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit PDC, rear (Part #66202287371).
- Which models use the hardware listed in this Retrofit kit PDC, rear?
- The hardware and components featured in the Retrofit kit PDC, rear are specific to the MINI F56 One produced during 2021. These technical specifications ensure that parts like the Retrofit kit PDC, rear (66202287371) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit kit PDC, rear assembly?
- Each item in the Retrofit kit PDC, rear corresponds to the numbered list below the illustration. For the MINI F56 One, you can identify the Retrofit kit PDC, rear by locating its position on the schematic, which then links to the official BMW part number 66202287371 for the Retrofitting / conversion / accessories section.
