Modificat.4-spoke MFL strng whl=> Sport for BMW 3 Series E46 320i (2000)

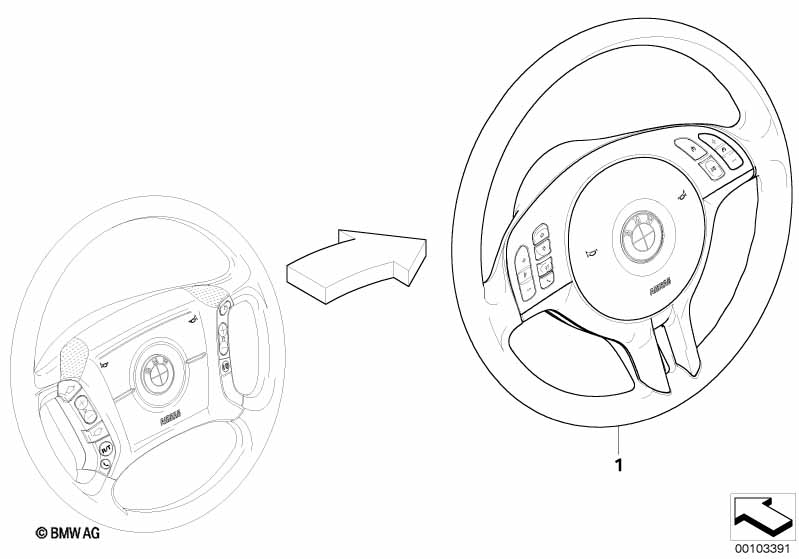

This Modificat.4-spoke MFL strng whl=> Sport technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Steering wheel can be chosen independently of color code or special equipment. . For vehicles with Interior trim finishers and Interior surface aluminium and Fine wood trim and Fine wood trim poplar grain and Young-Line |
S433A=No S434A=No S438A=No S4ACA=No S753A=No |
||||||||
| 01 | Airbag sport st. whl. lthr multifunction | COSMOSSCHW.-MET | 1 | 06/2000 | 09/2001 | 32306753958 | $426.95 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 09/2001 | 32306770417 | $486.69 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 09/2001 | 32306880599 | Shop at ECS Tuning | ||||
| For vehicles with imola-rot 2 |
U405=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770417 | $486.69 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 09/2001 | 32306770416 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 09/2001 | 32306880599 | Shop at ECS Tuning | ||||
| For vehicles with Leather High/black |
V5SW=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770416 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Switch, multifunct. steering wheel | 1 | 06/2000 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| -- | connecting line, steering wheel | 1 | 06/2000 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| -- | screw for plastic | 4X14MM | 6 | 06/2000 | 32306756573 | $0.70 | Shop at ECS Tuning | |||
| -- | Cover | HOLZ MYRTE | 1 | 06/2000 | 32306760154 | $367.28 | Shop at ECS Tuning | |||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers, matt chrome |
S439A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 09/2001 | 32306770417 | $486.69 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Switch, multifunct. steering wheel | 1 | 06/2000 | 09/2001 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | ||
| -- | connecting line, steering wheel | 1 | 06/2000 | 09/2001 | 61318386947 | $30.43 | Shop at ECS Tuning | |||
| -- | Cover | MATTCHROM | 1 | 06/2000 | 09/2001 | 32306756528 | $131.40 | Shop at ECS Tuning | ||
| -- | screw for plastic | 4X14MM | 6 | 06/2000 | 09/2001 | 32306756573 | $0.70 | Shop at ECS Tuning | ||
| -- | Hub cap, airbag | 1 | 06/2000 | 09/2001 | 32306880599 | Shop at ECS Tuning | ||||
| For vehicles with Cloth flock "Raute" |
E3=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 09/2001 | 32306770417 | $486.69 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 09/2001 | 32306880599 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770416 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with velvet-blue metallic |
M379=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770417 | $486.69 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Leather High/brombeer or Leather High/light gelb |
V5BB=Yes V5LT=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770416 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Cloth Jacquard or Fabric Tex 2000/anthracite or Fabric Tex 2000/brombeer |
H9=Yes J1AT=Yes J1BB=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770417 | $486.69 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Switch, multifunct. steering wheel | 1 | 06/2000 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| -- | connecting line, steering wheel | 1 | 06/2000 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| -- | Cover | SOFTLACK-SCHW. | 1 | 06/2000 | 32306756514 | $131.40 | Shop at ECS Tuning | |||
| -- | screw for plastic | 4X14MM | 6 | 06/2000 | 32306756573 | $0.70 | Shop at ECS Tuning | |||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive leather "futura"/granatrot or Exclusive leather "futura"/hellbeige 2 or Exclusive leather "futura"/schwarz or Exclusive leather "futura"/hellgrau |
LMC1=Yes LMHC=Yes LMSW=Yes LMTH=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770416 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Switch, multifunct. steering wheel | 1 | 06/2000 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| -- | connecting line, steering wheel | 1 | 06/2000 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| -- | screw for plastic | 4X14MM | 6 | 06/2000 | 32306756573 | $0.70 | Shop at ECS Tuning | |||
| -- | Cover | PAPPEL RAUCHGR. | 1 | 06/2000 | 32306768135 | ENDED, +core | Shop at ECS Tuning | |||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Leather, "Chameleon"/kiesel-grau or Leather, "Chameleon"/black-gray or Fabric/leather "Scritto"/mystic-blau or Fabric/leather "Scritto"/black-grau |
V3KA=Yes V3TM=Yes V8MF=Yes V8TM=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770417 | $486.69 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Cloth/leather "Maglia" or Cloth/leather "Bianco-Nero" or Cloth Jacquard or Imitation leather or Leather Mont./basic equipm. or Cloth/leather "Gran Turismo"/anthracite or Fabric Tex 2000/anthracite or Fabric Tex 2000/brombeer |
E9=Yes H7=Yes H9=Yes K4=Yes N6=Yes E4AT=Yes J1AT=Yes J1BB=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 06/2000 | 32306770417 | $486.69 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Switch, multifunct. steering wheel | 1 | 06/2000 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| -- | connecting line, steering wheel | 1 | 06/2000 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| -- | Cover | TITAN II | 1 | 06/2000 | 32306756529 | $100.25 | Shop at ECS Tuning | |||
| -- | screw for plastic | 4X14MM | 6 | 06/2000 | 32306756573 | $0.70 | Shop at ECS Tuning | |||
| -- | Hub cap, airbag | 1 | 06/2000 | 32306880599 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
