Modificat.4-spoke MFL strng whl=> Sport for BMW 5 Series E39 525d (2003)

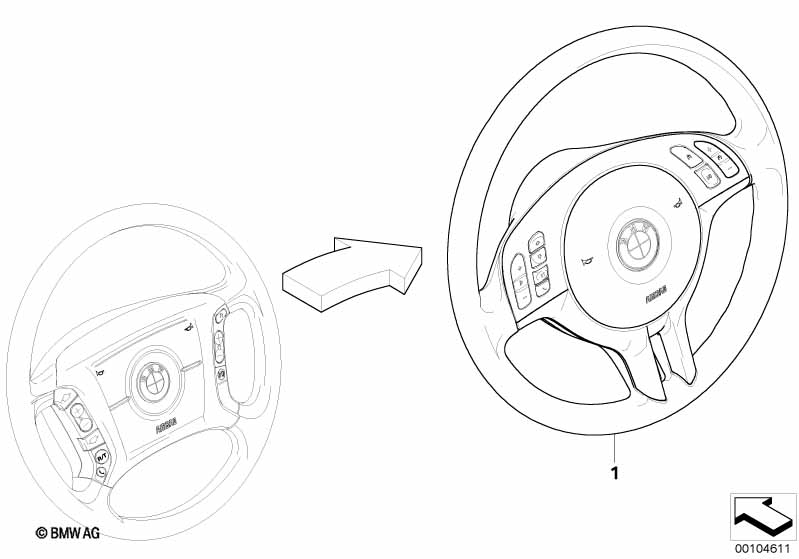

This Modificat.4-spoke MFL strng whl=> Sport technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Steering wheel can be chosen independently of color code or special equipment. . Steering wheel heating and recirculating air function No longer possible for A/C on steering wheel Mounting parts, see ITU |
|||||||||
| For vehicles with Interior trim finishers |
S425A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 03/1999 | 32306770421 | $548.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Switch, multifunct. steering wheel | 1 | 03/1999 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| -- | connecting line, steering wheel | 1 | 03/1999 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| -- | Cover | SOFTLACK-SCHW. | 1 | 03/1999 | 32306756514 | $131.40 | Shop at ECS Tuning | |||
| -- | screw for plastic | 4X14MM | 6 | 03/1999 | 32306756573 | $0.70 | Shop at ECS Tuning | |||
| -- | Hub cap, airbag | 1 | 03/1999 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim |
S773A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 03/1999 | 32306770420 | $548.31 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 03/1999 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 03/1999 | 32306770420 | $548.31 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Switch, multifunct. steering wheel | 1 | 03/1999 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| -- | connecting line, steering wheel | 1 | 03/1999 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| -- | screw for plastic | 4X14MM | 6 | 03/1999 | 32306756573 | $0.70 | Shop at ECS Tuning | |||
| -- | Cover | NUSSBAUMWURZEL | 1 | 03/1999 | 32306760149 | $388.12 | Shop at ECS Tuning | |||
| -- | Hub cap, airbag | 1 | 03/1999 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Vinyl sand-beige or Leather Montana/basic equip/sandbeige |
K4SN=Yes N6SN=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 03/1999 | 32306770421 | $548.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 03/1999 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim, mussle maple or Exclusive Edition |
S422A=Yes S723A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 03/1999 | 32306770420 | $548.31 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 03/1999 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Rips diagonal/gray or Vinyl gray or Leather Montana/basic equip/grau |
F4TT=Yes K4TT=Yes N6TT=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 03/1999 | 32306770421 | $548.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 03/1999 | 32306880599 | Shop at ECS Tuning | |||||
| For vehicles with Fabric Rips diagonal/anthracite or Fabric Rips diagonal/marine-blau or Fabric Rips diagonal/englisch-grün or Cloth "Headline"/anthracite or Imitation leather/black or Leather Montana/basic equip/schwarz or Standard leather, Montana/granit-silber or Leather, Montana/lightgelb or Leather, Montana/sandbeige |
F4AT=Yes F4DL=Yes F4EG=Yes G3AT=Yes K4SW=Yes N6SW=Yes O7GN=Yes O7LG=Yes O7SN=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 03/1999 | 32306770421 | $548.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Hub cap, airbag | 1 | 03/1999 | 32306880599 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
