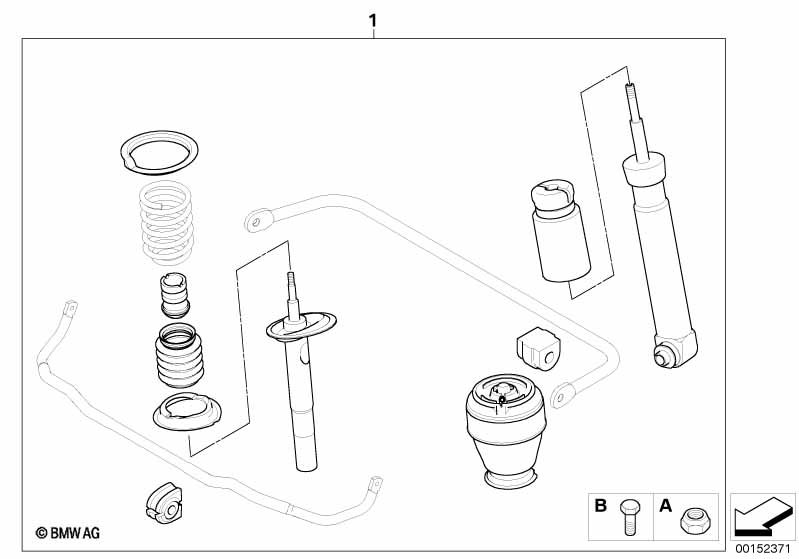

Retrofit kit M sports suspension for BMW 5 Series E61 530d (2005)

This Retrofit kit M sports suspension technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.

Retrofit kit M sports suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sports suspension settings
and
Dynamic Drive
S226A=No

S229A=No
01 Retrofit kit M sports suspension 1 33500412931 ENDED Shop at ECS Tuning
additionally required parts:
STABILIZER BAR FRONT
STABILIZER BAR REAR
For coil springs, see spring table
Notes
  • ENDED = the part has been discontinued (no longer available).
