Installing set additional head light for BMW MINI Clubman F54 One (2019)

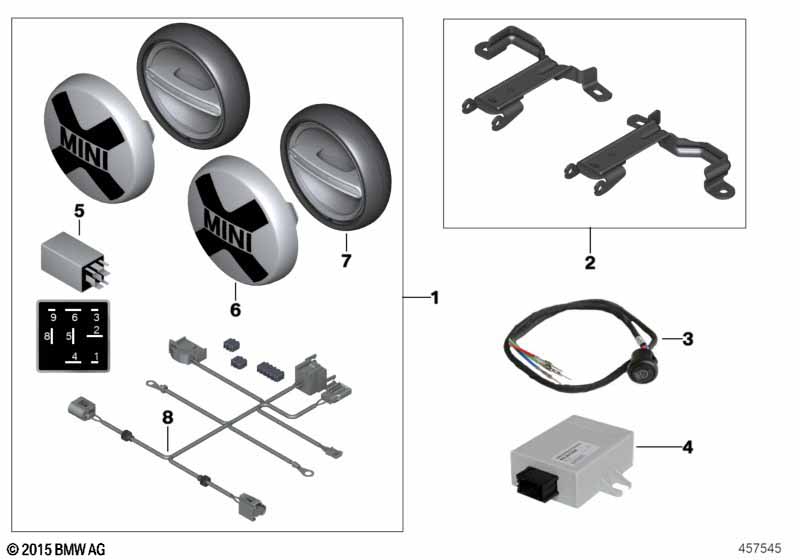

This Installing set additional head light technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please observe PuMA bulletin 60274470 for vehicles with halogen low beams! |
|||||||||
| For vehicles with Adaptive LED headlight or LED headlight or LED headlight with expanded content |
S552A=Yes S5A2A=Yes S5A4A=Yes |
|||||||||
| 01 | Installing set additional head light | CHROM / CHROME | 1 | 63120417669 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Installing set additional head light | SCHWARZ / BLACK | 1 | 63120420291 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit LED auxiliary driving lamps | CHROM / CHROME | 1 | 63122287147 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit LED auxiliary driving lamps | SCHWARZ / BLACK | 1 | 63122287148 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket, additional headlight | 1 | 63122408606 | Shop at ECS Tuning | ||||||
| -- | CAN interface | MINI ZSW | 1 | 63122462907 | Shop at ECS Tuning | |||||
| For vehicles with Adaptive LED headlight and LED headlight and LED headlight with expanded content |
S552A=No S5A2A=No S5A4A=No |
|||||||||
| 01 | Installing set additional head light | CHROM / CHROME | 1 | 63120417669 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit LED auxiliary driving lamps | CHROM / CHROME | 1 | 63122287147 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Installing set additional head light | SCHWARZ / BLACK | 1 | 63120420291 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Retrofit kit LED auxiliary driving lamps | SCHWARZ / BLACK | 1 | 63122287148 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket, additional headlight | 1 | 63122408606 | Shop at ECS Tuning | ||||||
| 02 | Bracket, additional headlight | 1 | 63122408606 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive LED headlight or LED headlight or LED headlight with expanded content |
S552A=Yes S5A2A=Yes S5A4A=Yes |
|||||||||
| 04 | CAN interface | MINI ZSW | 1 | 63122462907 | Shop at ECS Tuning | |||||
| 05 | Control module | ECE | 1 | 63120420295 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Installing set additional head light | CHROM / CHROME | X | 63120417669 | Shop at ECS Tuning | |||||
| -- | Installing set additional head light | SCHWARZ / BLACK | X | 63120420291 | +core | Shop at ECS Tuning | ||||
| 05 | Control module, LED additional headlight | ECE | 1 | 63122289190 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Retrofit kit LED auxiliary driving lamps | CHROM / CHROME | X | 63122287147 | Shop at ECS Tuning | |||||
| -- | Retrofit kit LED auxiliary driving lamps | SCHWARZ / BLACK | X | 63122287148 | Shop at ECS Tuning | |||||
| Only included in US set. | ||||||||||
| 06 | Covering cap | SCHWARZ/BLACK | 2 | 63120432836 | $9.00 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 06 | Covering cap | WEIß | 2 | 63120417672 | $9.00 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Installing set additional head light | CHROM / CHROME | X | 63120417669 | Shop at ECS Tuning | |||||
| -- | Installing set additional head light | SCHWARZ / BLACK | X | 63120417885 | $292.00 | ENDED | Shop at ECS Tuning | |||
| -- | Installing set additional head light | SCHWARZ / BLACK | X | 63120420291 | +core | Shop at ECS Tuning | ||||
| -- | Installing set additional head light | CHROM / CHROME | X | 63210420292 | $292.00 | +core | Shop at ECS Tuning | |||
| 06 | Covering cap | ZSW LED | 2 | 63122360496 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Retrofit kit LED auxiliary driving lamps | CHROM / CHROME | X | 63122287147 | Shop at ECS Tuning | |||||
| -- | Retrofit kit LED auxiliary driving lamps | SCHWARZ / BLACK | X | 63122287148 | Shop at ECS Tuning | |||||
| -- | Retrofit kit LED auxiliary driving lamps | CHROM / CHROME | X | 63122288981 | Shop at ECS Tuning | |||||
| -- | Retrofit kit LED auxiliary driving lamps | SCHWARZ / BLACK | X | 63122288982 | Shop at ECS Tuning | |||||
| 07 | High beam | CHROM | 2 | 63120417670 | $103.95 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Installing set additional head light | CHROM / CHROME | X | 63120417669 | Shop at ECS Tuning | |||||
| -- | Installing set additional head light | CHROM / CHROME | X | 63210420292 | $292.00 | +core | Shop at ECS Tuning | |||
| 07 | High beam | SCHWARZ | 2 | 63120420300 | $103.95 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Installing set additional head light | SCHWARZ / BLACK | X | 63120417885 | $292.00 | ENDED | Shop at ECS Tuning | |||
| -- | Installing set additional head light | SCHWARZ / BLACK | X | 63120420291 | +core | Shop at ECS Tuning | ||||
| 07 | LED auxiliary headlight | CHROM / CHROME | 2 | 63122289658 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Retrofit kit LED auxiliary driving lamps | CHROM / CHROME | X | 63122287147 | Shop at ECS Tuning | |||||
| -- | Retrofit kit LED auxiliary driving lamps | CHROM / CHROME | X | 63122288981 | Shop at ECS Tuning | |||||
| 07 | LED auxiliary headlight | SCHWARZ / BLACK | 2 | 63122289659 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Retrofit kit LED auxiliary driving lamps | SCHWARZ / BLACK | X | 63122287148 | Shop at ECS Tuning | |||||
| -- | Retrofit kit LED auxiliary driving lamps | SCHWARZ / BLACK | X | 63122288982 | Shop at ECS Tuning | |||||
| 08 | Retrofit cable set | ECE | 1 | 63120420297 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
