Installing set fog lamps for BMW 3 Series E91 318i (2008)

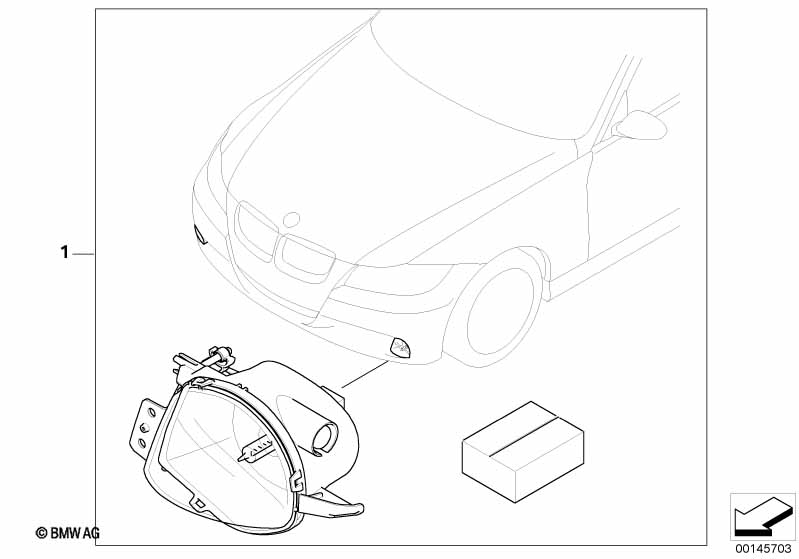

This Installing set fog lamps technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Auxiliary heating |
S536A=No |
||||||||
| not in connection with BMW independent park heating |
||||||||||
| 01 | Installing set fog lamps | 1 | 63130395393 | $169.95 | ENDED, +core | Shop at ECS Tuning | ||||
| additionally required parts: Footwell module Control element light |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
