Retrofit fog lights LED for BMW 6 Series F12 640dX (2015)

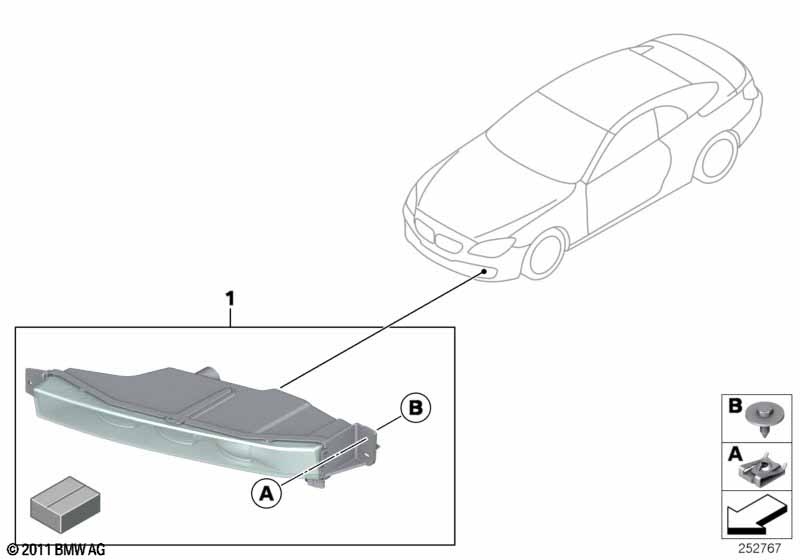

This Retrofit fog lights LED technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 640dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit cable set, fog lamp | 1 | 07/2012 | 61119256724 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Front fog lamp, LED, left | 1 | 07/2012 | 63177234927 | Shop at ECS Tuning | |||||
| -- | Front fog lamp, LED, right | 1 | 07/2012 | 63177234928 | Shop at ECS Tuning | |||||
| -- | Control unit lights | 1 | 07/2012 | 61319192744 | ENDED | Shop at ECS Tuning | ||||
| -- | Cable tie | L=200MM/B=3,6MM | 10 | 07/2012 | 61131367599 | $0.43 | Shop at ECS Tuning | |||
| -- | Cable terminal | A6 2,5-6 MM² | 1 | 07/2012 | 61131388431 | $0.25 | Shop at ECS Tuning | |||
| -- | Wiring front | 1 | 07/2012 | 61129270020 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
