Retrofit kit bi-xenon headlight for BMW 3 Series E46 325Ci (2003)

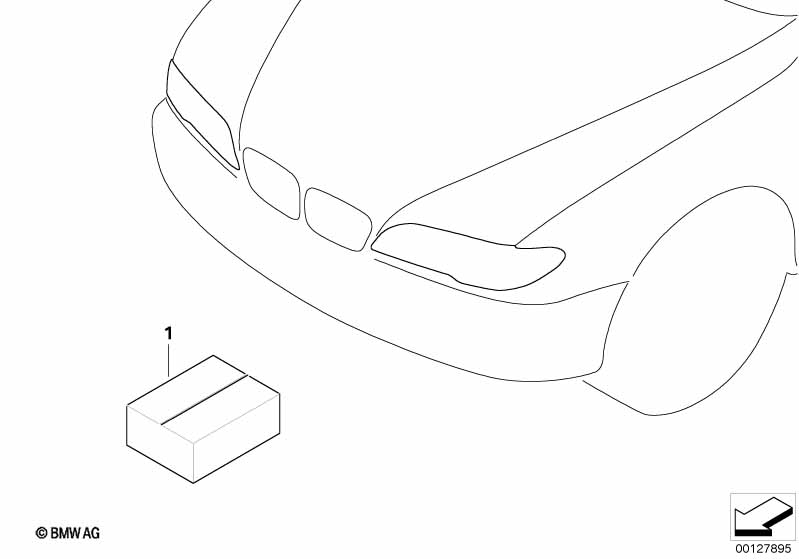

This Retrofit kit bi-xenon headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit bi-xenon headlight | BASISSATZ O. SW | 1 | 03/2003 | 63120302326 | $347.95 | ENDED | Shop at ECS Tuning | ||
| additionally required parts: Bi-xenon headlight Retrofit kit, headlight cleaning system Switch unit, light |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci Retrofit kit bi-xenon headlight?
- This technical diagram illustrates the Retrofit kit bi-xenon headlight within the Retrofitting / conversion / accessories group for the 3 Series E46 325Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit bi-xenon headlight (Part #63120302326).
- Which models use the hardware listed in this Retrofit kit bi-xenon headlight?
- The hardware and components featured in the Retrofit kit bi-xenon headlight are specific to the 3 Series E46 325Ci produced during 2003. These technical specifications ensure that parts like the Retrofit kit bi-xenon headlight (63120302326) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit kit bi-xenon headlight assembly?
- Each item in the Retrofit kit bi-xenon headlight corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Retrofit kit bi-xenon headlight by locating its position on the schematic, which then links to the official BMW part number 63120302326 for the Retrofitting / conversion / accessories section.
