Retrofit fog lights LED for BMW 3 Series F30 LCI 330i (2018)

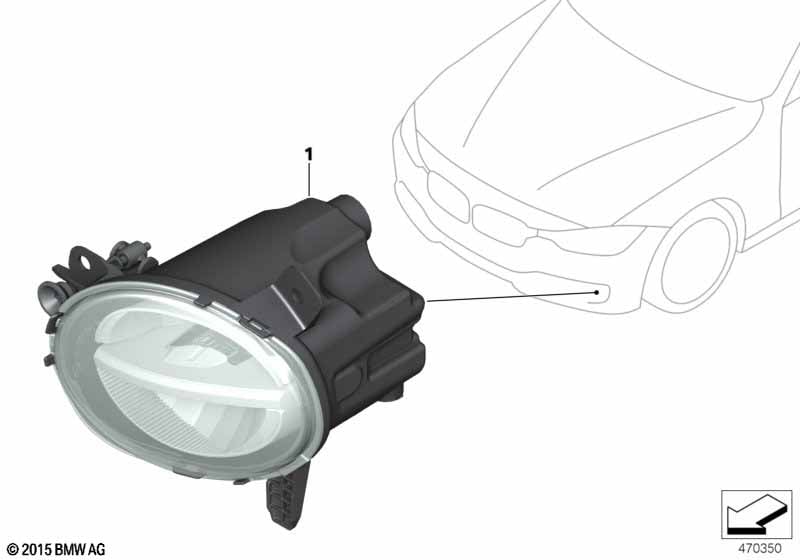

This Retrofit fog lights LED technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fog lights Retrofit must be encoded |
S520A=Yes |
|||||||||
| 01 | Front fog lamp, LED, left | 1 | 63177315559 | Shop at ECS Tuning | ||||||
| 01 | Front fog lamp, LED, right | 1 | 63177315560 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 330i Retrofit fog lights LED?
- This technical diagram illustrates the Retrofit fog lights LED within the Retrofitting / conversion / accessories group for the 3 Series F30 LCI 330i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Front fog lamp, LED, left (Part #63177315559).
- Which models use the hardware listed in this Retrofit fog lights LED?
- The hardware and components featured in the Retrofit fog lights LED are specific to the 3 Series F30 LCI 330i produced during 2018. These technical specifications ensure that parts like the Front fog lamp, LED, left (63177315559) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit fog lights LED assembly?
- Each item in the Retrofit fog lights LED corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 330i, you can identify the Front fog lamp, LED, left by locating its position on the schematic, which then links to the official BMW part number 63177315559 for the Retrofitting / conversion / accessories section.
