Headlight aim control for BMW 3 Series E36 318i (1998)

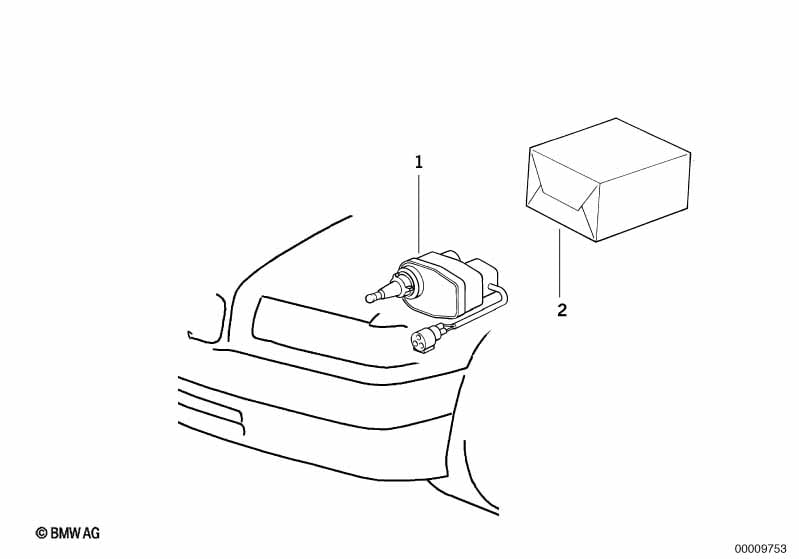

This Headlight aim control technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FOR MODIFICATION PLS SEE INSTRUCTIONS |
|||||||||
| 01 | Retrofit kit, headlight range control | 1 | 67169402052 | $251.95 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wiring light regulator | 1 | 61129410627 | $54.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring light regulator | 1 | 61129410627 | $54.50 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Headlight aim control?
- This technical diagram illustrates the Headlight aim control within the Retrofitting / conversion / accessories group for the 3 Series E36 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, headlight range control (Part #67169402052).
- Which models use the hardware listed in this Headlight aim control?
- The hardware and components featured in the Headlight aim control are specific to the 3 Series E36 318i produced during 1998. These technical specifications ensure that parts like the Retrofit kit, headlight range control (67169402052) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight aim control assembly?
- Each item in the Headlight aim control corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Retrofit kit, headlight range control by locating its position on the schematic, which then links to the official BMW part number 67169402052 for the Retrofitting / conversion / accessories section.
