Retrofit kit M carbon-ceramic brakes for BMW 6 Series F12 LCI M6 (2018)

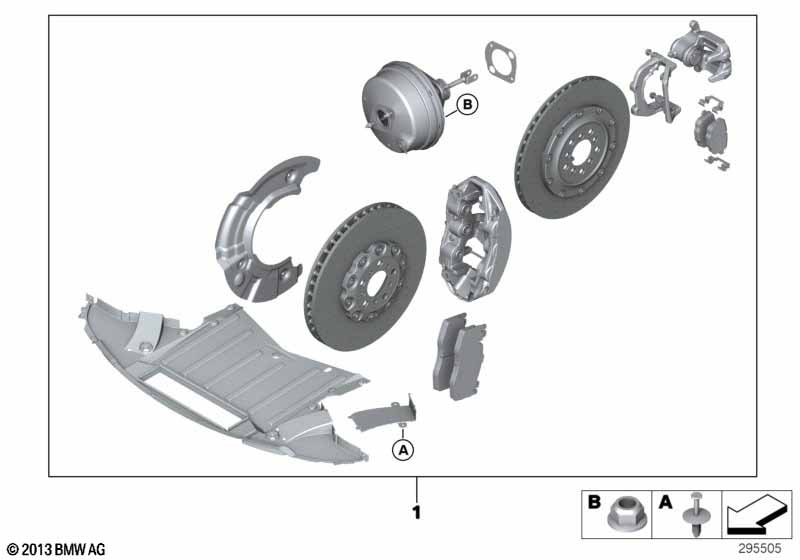

This Retrofit kit M carbon-ceramic brakes technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 LCI M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | additionally required parts: 20'' wheels. |
|||||||||
| Important! Note Repair Manual |
||||||||||
| 01 | Retrofit kit, carbon-ceramic brakes | 1 | 34112317804 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F12 LCI M6 Retrofit kit M carbon-ceramic brakes?
- This technical diagram illustrates the Retrofit kit M carbon-ceramic brakes within the Retrofitting / conversion / accessories group for the 6 Series F12 LCI M6 produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, carbon-ceramic brakes (Part #34112317804).
- Which models use the hardware listed in this Retrofit kit M carbon-ceramic brakes?
- The hardware and components featured in the Retrofit kit M carbon-ceramic brakes are specific to the 6 Series F12 LCI M6 produced during 2018. These technical specifications ensure that parts like the Retrofit kit, carbon-ceramic brakes (34112317804) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit kit M carbon-ceramic brakes assembly?
- Each item in the Retrofit kit M carbon-ceramic brakes corresponds to the numbered list below the illustration. For the 6 Series F12 LCI M6, you can identify the Retrofit kit, carbon-ceramic brakes by locating its position on the schematic, which then links to the official BMW part number 34112317804 for the Retrofitting / conversion / accessories section.
