Navigation installation set for BMW 7 Series E65 745i (2005)

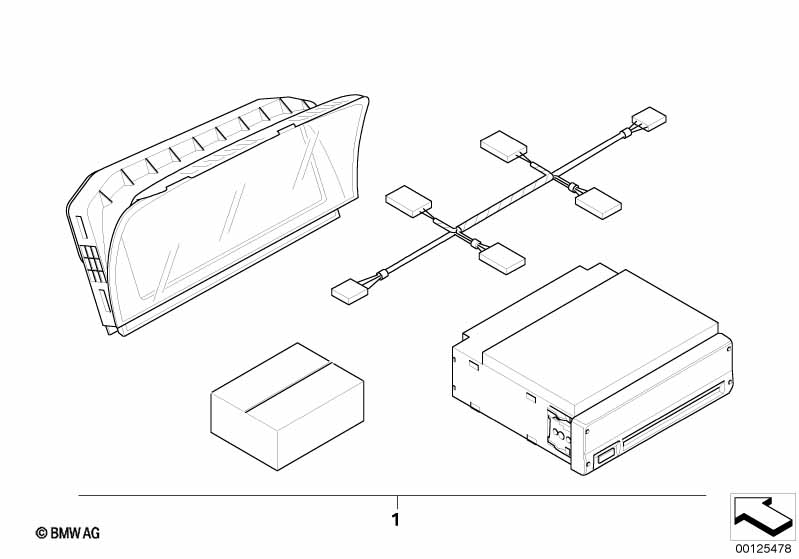

This Navigation installation set technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| For vehicles with TV function and Language version, Chinese simpl. and Language version Korean and Rear display screen |
S601A=No S866A=No S867A=No S603A=No |
|||||||||
| 01 | Retrofit kit DVD navigation | 1 | 03/2003 | 03/2005 | 65900303364 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adapter lead | 1 | 03/2003 | 03/2005 | 61124118363 | $107.52 | ENDED | Shop at ECS Tuning | ||
| If the car is not equipped with the BMW Professional radio, the appropriate aerial tuner must also be ordered from the EPC. Following parts are to be ordered separately ROAD MAP CD DVD road map |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Navigation installation set?
- This technical diagram illustrates the Navigation installation set within the Retrofitting / conversion / accessories group for the 7 Series E65 745i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit DVD navigation (Part #65900303364).
- Which models use the hardware listed in this Navigation installation set?
- The hardware and components featured in the Navigation installation set are specific to the 7 Series E65 745i produced during 2005. These technical specifications ensure that parts like the Retrofit kit DVD navigation (65900303364) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Navigation installation set assembly?
- Each item in the Navigation installation set corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Retrofit kit DVD navigation by locating its position on the schematic, which then links to the official BMW part number 65900303364 for the Retrofitting / conversion / accessories section.
