Navigation arrow displ./indiv.parts for BMW 3 Series E46 318i (2001)

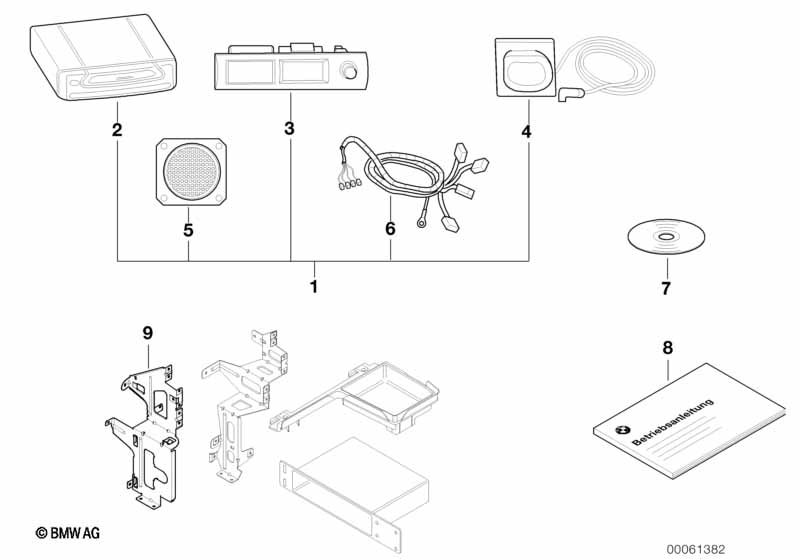

This Navigation arrow displ./indiv.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Computer installation in trunk only suitable for vehicles with BMW radio Not suitable for on-board monitor (SA 602), radio navigation (SA 606), navigation system (SA 609) |
|||||||||
| Computer installation at rear left | ||||||||||
| 01 | Navigation installation set | NAVIG.IIIL E46 | 1 | 65900010198 | ENDED, +core | Shop at ECS Tuning | ||||
| additionally required parts: Base rack (item 9) Operating instructions CD road map (see table 650493) |
||||||||||
| For vehicles with Hi-Fi System Harman Kardon Installation of computer under parcel shelf |
S674A=No |
|||||||||
| 01 | Navigation installation set | NAVIG.IIIL E46 | 1 | 65900010198 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Support bracket, navigation computer | MKIII E46 | 1 | 82111470457 | $60.26 | ENDED, +core | Shop at ECS Tuning | |||
| Operating instructions CD road map (see table 650493) |
||||||||||
| 02 | Navigation CD computer | NAVIG. IIIL | 1 | 65909416251 | ENDED | Shop at ECS Tuning | ||||
| 03 | Console, monitor | ZB E46IIIL | 1 | 51189416253 | $902.84 | ENDED | Shop at ECS Tuning | |||
| 04 | Gps antenna | KURZ | 1 | 65909410711 | ENDED | Shop at ECS Tuning | ||||
| 05 | Navigation speaker | NAVIG. IIIL E46 | 1 | 65139416461 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Wiring set for power supply | NAVIG. IIIL E46 | 1 | 84120010199 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Software-CD | NAVI MKIII V2.3 | 1 | 84430001071 | ENDED | Shop at ECS Tuning | ||||
| for loading other languages than German / Englisch |
||||||||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, EN | 1 | 01210002662 | ENDED | Shop at ECS Tuning | ||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, FR | 1 | 01220002663 | Shop at ECS Tuning | |||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, ES | 1 | 01230002664 | ENDED | Shop at ECS Tuning | ||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, IT | 1 | 01240002666 | $29.02 | ENDED | Shop at ECS Tuning | |||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, SV | 1 | 01250002669 | $29.02 | ENDED | Shop at ECS Tuning | |||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, NL | 1 | 01260002670 | $29.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CD changer for 6 CDs and Preparation, BMW 6-CD changer I-bus REQUIRE ALSO |
S672A=No S692A=No |
|||||||||
| 09 | Base support system, front | 1 | 65128370924 | $12.88 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Base support system, rear | 1 | 65128370932 | $12.88 | Shop at ECS Tuning | |||||
| Rear left trunk trim | ||||||||||
| -- | Body nut | M5 | 12 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Trunk tray left | 1 | 51478162577 | $22.34 | Shop at ECS Tuning | |||||
| Rear left trunk trim | ||||||||||
| -- | Left oddments tray | 1 | 51478230573 | $11.20 | Shop at ECS Tuning | |||||
| Rear left trunk trim | ||||||||||
| -- | Hex bolt | M5X14-8.8-ZNNIV | 12 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
