Navigation arrow displ./indiv.parts for BMW 3 Series E46 330Ci

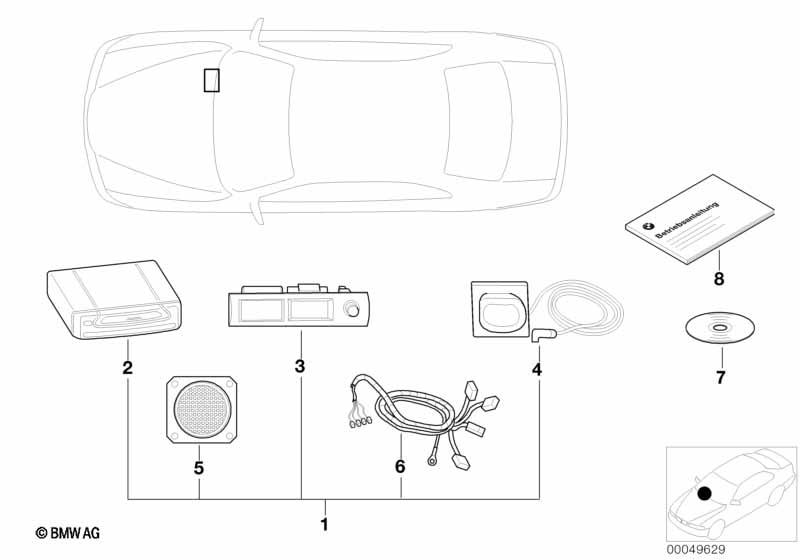

This Navigation arrow displ./indiv.parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Installation of computer in glove compartment only suitable for vehicles with BMW radio Not suitable for on-board monitor (SA 602), radio navigation (SA 606), navigation system (SA 609) |
|||||||||
| 02 | Navigation CD computer | NAVIG. IIIL | 1 | 65909416251 | ENDED | Shop at ECS Tuning | ||||
| 03 | Console, monitor | ZB E46IIIL | 1 | 51189416253 | $902.84 | ENDED | Shop at ECS Tuning | |||
| 04 | Gps antenna | KURZ | 1 | 65909410711 | ENDED | Shop at ECS Tuning | ||||
| 05 | Navigation speaker | NAVIG. IIIL E46 | 1 | 65139416461 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Wiring set for power supply | NAVIG. IIIL E46 | 1 | 61129416459 | ENDED | Shop at ECS Tuning | ||||
| 07 | Software-CD | NAVI MKIII V2.3 | 1 | 84430001071 | ENDED | Shop at ECS Tuning | ||||
| for loading other languages than German / Englisch |
||||||||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, EN | 1 | 01210002662 | ENDED | Shop at ECS Tuning | ||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, FR | 1 | 01220002663 | Shop at ECS Tuning | |||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, ES | 1 | 01230002664 | ENDED | Shop at ECS Tuning | ||||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, IT | 1 | 01240002666 | $29.02 | ENDED | Shop at ECS Tuning | |||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, SV | 1 | 01250002669 | $29.02 | ENDED | Shop at ECS Tuning | |||
| 08 | Owner's man., on-board monitor+navig. | E36, E46, NL | 1 | 01260002670 | $29.02 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
