Navi.syst.without SA602/spare parts only for BMW 3 Series E46 330d (2001)

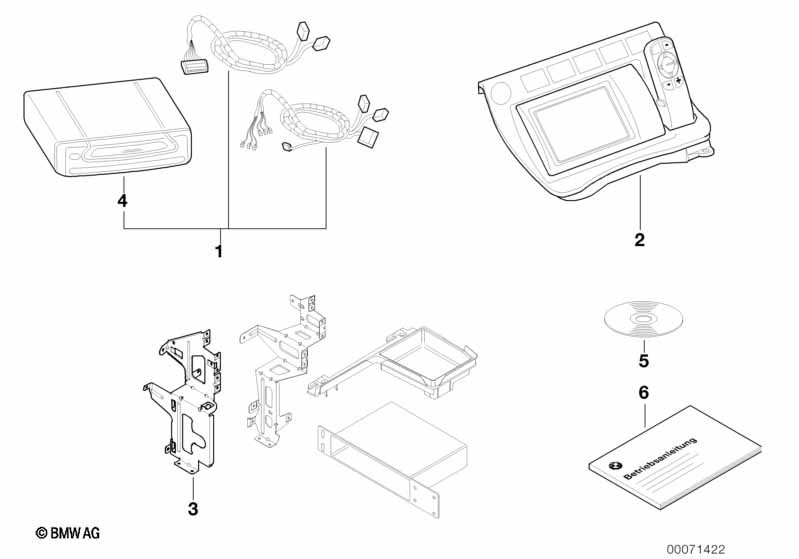

This Navi.syst.without SA602/spare parts only technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only suitable for vehicles with BMW radio Not suitable for on-board monitor (SA 602), radio navigation (SA 606), navigation system (SA 609) |
|||||||||
| For vehicles with Tyre pressure control (TPC) and Sun-blind, rear and Seat heating driver/passenger and Hi-Fi System Harman Kardon not suitable for SA 358 Climate comfort, windshield |
S265A=No S415A=No S494A=No S674A=No |
|||||||||
| 01 | Navigation installation set | NAVI III E46 | 1 | 09/1999 | 65900015953 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Changeover module | 1 | 09/1999 | 82890004165 | $110.48 | ENDED, +core | Shop at ECS Tuning | |||
| Switch center (see table 61_1305) Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Gps antenna | LANG | 1 | 09/1999 | 65900010509 | $140.95 | ENDED | Shop at ECS Tuning | ||
| Switch center (see table 61_1305) Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Additional kit, mounting components | NAVI. III E46/3 | 1 | 09/1999 | 65900010513 | ENDED | Shop at ECS Tuning | |||
| Switch center (see table 61_1305) Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Console, monitor | ZB E46III | 1 | 09/1999 | 65900015955 | ENDED, +core | Shop at ECS Tuning | |||
| Switch center (see table 61_1305) Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Addit.power supply, switching center | NAVI III | 1 | 09/1999 | 65900029428 | ENDED | Shop at ECS Tuning | |||
| Switch center (see table 61_1305) Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Covering cap | 6 | 09/1999 | 61316905175 | $7.65 | Shop at ECS Tuning | ||||
| Switch center (see table 61_1305) Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| For vehicles with Tyre pressure control (TPC) or Sun-blind, rear or Seat heating driver/passenger or Hi-Fi System Harman Kardon not suitable for SA 358 Climate comfort, windshield |
S265A=Yes S415A=Yes S494A=Yes S674A=Yes |
|||||||||
| 01 | Navigation installation set | NAVI III E46 | 1 | 09/1999 | 65900015953 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Changeover module | 1 | 09/1999 | 82890004165 | $110.48 | ENDED, +core | Shop at ECS Tuning | |||
| Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Gps antenna | LANG | 1 | 09/1999 | 65900010509 | $140.95 | ENDED | Shop at ECS Tuning | ||
| Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Additional kit, mounting components | NAVI. III E46/3 | 1 | 09/1999 | 65900010513 | ENDED | Shop at ECS Tuning | |||
| Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Console, monitor | ZB E46III | 1 | 09/1999 | 65900015955 | ENDED, +core | Shop at ECS Tuning | |||
| Operating instructions CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| 02 | Console, monitor | ZB E46III | 1 | 09/1999 | 65900015955 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Console | NAVIG. E46 LHD | 1 | 09/1999 | 51180015949 | $181.95 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Monitor, color | NAVI MKIII | 1 | 82820015950 | ENDED | Shop at ECS Tuning | ||||
| 02 | Control | NAVI MK3 E46 | 1 | 84440151053 | ENDED | Shop at ECS Tuning | ||||
| 02 | Adapter lead | NAVI III | 1 | 61120015952 | ENDED | Shop at ECS Tuning | ||||
| VEHICLES WITHOUT SA 672 CD changer or SA 672 provisions for CD changer REQUIRE ALSO |
||||||||||
| 03 | Base support system, front | 1 | 65128378013 | $16.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Base support system, rear | 1 | 65128378014 | $16.59 | Shop at ECS Tuning | |||||
| Rear left trunk trim | ||||||||||
| -- | Body nut | M5 | 6 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Sound insulating left | 1 | 51488259800 | $16.40 | ENDED | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Hex nut with plate | M6 ZNT | 2 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Hex bolt | M5X14-8.8-ZNNIV | 6 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| VEHICLES WITHOUT SA 672 CD changer or SA 672 provisions for CD changer but with BMW (cellular) phone REQUIRE ALSO |
||||||||||
| 03 | Base support system, front | 1 | 65128378013 | $16.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bracket transmitter-receiver | D-NETZ | 1 | 84138379548 | ENDED | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Base support system, rear | 1 | 65128378014 | $16.59 | Shop at ECS Tuning | |||||
| Rear left trunk trim | ||||||||||
| -- | Body nut | M5 | 6 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Sound insulating left | 1 | 51488259800 | $16.40 | ENDED | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Hex nut with plate | M6 ZNT | 2 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Hex nut | M5 | 4 | 07129901767 | $0.62 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| -- | Hex bolt | M5X14-8.8-ZNNIV | 7 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| Rear left trunk trim | ||||||||||
| 04 | Navigation CD computer | 1 | 65909408772 | ENDED | Shop at ECS Tuning | |||||
| 05 | Software-CD | NAVI MKIII V4.9 | 1 | 84430027783 | $27.50 | ENDED | Shop at ECS Tuning | |||
| for loading other languages than German / Englisch |
||||||||||
