Navigation system with route map (SZ) for BMW 3 Series E46 330xd (2003)

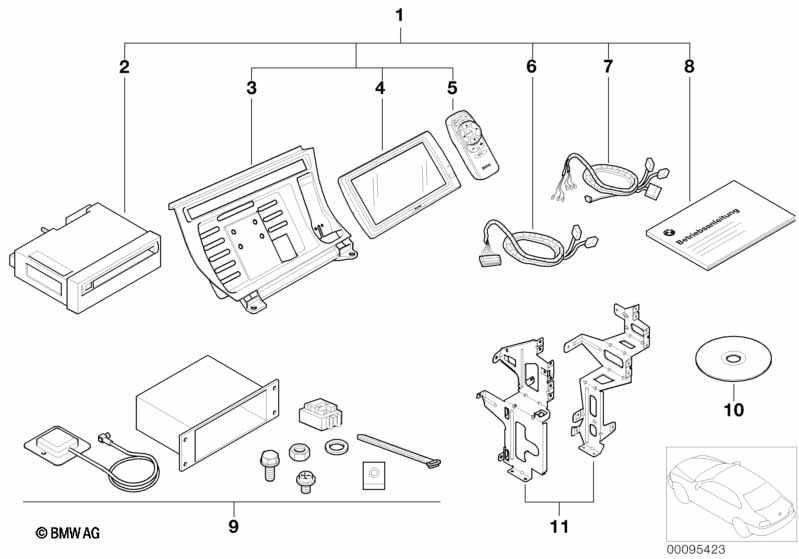

This Navigation system with route map (SZ) technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only suitable for vehicles with BMW radio or radio provisions For vehicles with On-board monitor with TV and Navigation system, radio and Navigation system Professional |
S602A=No S606A=No S609A=No |
||||||||
| For vehicles with Climate comfort windscreen |
S358A=No |
|||||||||
| 01 | Navigation installation set | MK3 E46 LHD | 1 | 09/1999 | 65900151635 | $4212.90 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Changeover module | 1 | 09/1999 | 82890004165 | $110.48 | ENDED, +core | Shop at ECS Tuning | |||
| CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| -- | Additional kit, mounting components | NAVI MK 3 | 1 | 09/1999 | 65900139173 | ENDED | Shop at ECS Tuning | |||
| CD road map (see table 65_0493) Installation kit changeover modul not required if already installed as part of another retrofit (Telephone, Sound Module) |
||||||||||
| 02 | Navigation CD computer | MK III | 1 | 65900028275 | $2695.00 | ENDED | Shop at ECS Tuning | |||
| 03 | Console | NAVIG. E46 LHD | 1 | 09/1999 | 51180015949 | $181.95 | ENDED, +core | Shop at ECS Tuning | ||
| 04 | Monitor, color | NAVI MKIII | 1 | 09/1999 | 82820015950 | ENDED | Shop at ECS Tuning | |||
| 05 | Control | NAVI MK3 E46 | 1 | 09/1999 | 84440151053 | ENDED | Shop at ECS Tuning | |||
| 05 | Control | NAVI MK3 E46 | 1 | 09/1999 | 84440151053 | ENDED | Shop at ECS Tuning | |||
| 06 | Monitor wiring harness | MK III | 1 | 65900028276 | ENDED | Shop at ECS Tuning | ||||
| 07 | Navigation wiring harness | NAVI MK 3 | 1 | 65900028867 | $160.95 | ENDED | Shop at ECS Tuning | |||
| 08 | Owner's handbook, multilinual | MK3 | 1 | 01290140891 | $10.70 | ENDED | Shop at ECS Tuning | |||
| 09 | Additional kit, mounting components | NAVI MK 3 | 1 | 65900139173 | ENDED | Shop at ECS Tuning | ||||
| for loading other languages than German / Englisch |
||||||||||
| 10 | Software-CD | NAVI MK3 V6.9 | 1 | 84430141487 | $29.50 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Owner's handbook, multilinual | MK3 | 1 | 01290140891 | $10.70 | ENDED | Shop at ECS Tuning | |||
| VEHICLES WITHOUT SA 672 CD changer or SA 672 provisions for CD changer REQUIRE ALSO |
||||||||||
| 11 | Base support system, front | 1 | 65128378013 | $16.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Base support system, rear | 1 | 65128378014 | $16.59 | Shop at ECS Tuning | |||||
| Rear left trunk trim Possibly transceiver module holder |
||||||||||
| -- | Body nut | M5 | 6 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| Rear left trunk trim Possibly transceiver module holder |
||||||||||
| -- | Sound insulating left | 1 | 51488259800 | $16.40 | ENDED | Shop at ECS Tuning | ||||
| Rear left trunk trim Possibly transceiver module holder |
||||||||||
| -- | Hex nut with plate | M6 ZNT | 2 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| Rear left trunk trim Possibly transceiver module holder |
||||||||||
| -- | Hex bolt | M5X14-8.8-ZNNIV | 6 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| Rear left trunk trim Possibly transceiver module holder |
||||||||||
