Replacement parts for radio navigation for BMW 5 Series E39 528i (2000)

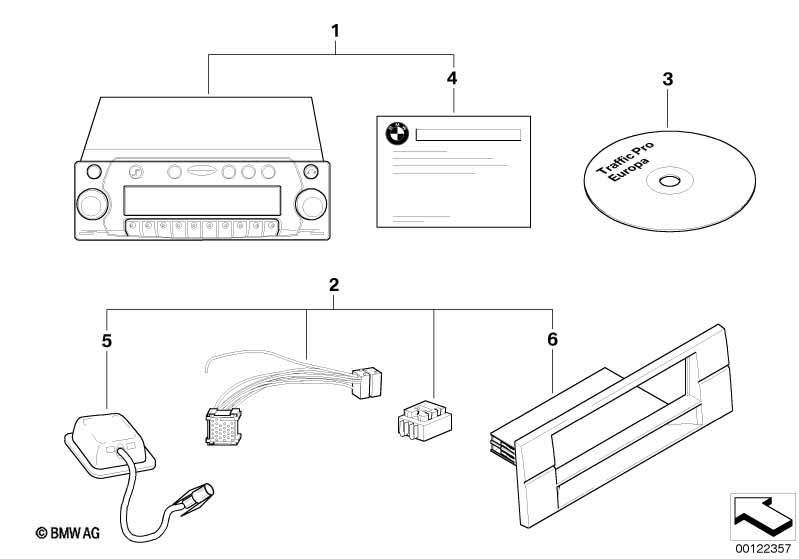

This Replacement parts for radio navigation technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only suitable for vehicles with BMW radio or radio provisions Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. For vehicles with Climate comfort windscreen and Auxiliary heating and On-board computer V with remote control and On-board monitor with TV and Navigation system Professional and Car telephone (GSM) w card reader, front and Car phone with cordless receiver and Preparation BMW Handy (Motorola) and Car telephone Professional and Preparation f tel.installation universal and Preparation f mobile phone w Bluetooth and HiFi System Professional DSP and Individual audio system |
S358A=No S536A=No S555A=No S602A=No S609A=No S629A=No S630A=No S632A=No S638A=No S640A=No S644A=No S677A=No S752A=No |
||||||||
| 01 | Navigation system, radio | TRAFFIC PRO ECE | 1 | 09/2000 | 65900153186 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Additional kit, mounting components | TRAFFIC PRO E39 | 1 | 09/2000 | 65900139885 | ENDED | Shop at ECS Tuning | |||
| -- | BMW CD Europe | V 8.0 | 1 | 09/2000 | 65900393738 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Radio BMW Professional |
S663A=Yes |
|||||||||
| 01 | Navigation system, radio | TRAFFIC PRO ECE | 1 | 02/2001 | 65900153186 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Additional kit, mounting components | TRAFFIC PRO E39 | 1 | 02/2001 | 65900139885 | ENDED | Shop at ECS Tuning | |||
| -- | BMW CD Europe | V 8.0 | 1 | 02/2001 | 65900393738 | ENDED | Shop at ECS Tuning | |||
| 02 | Additional kit, mounting components | TRAFFIC PRO E39 | 1 | 09/2000 | 65900139885 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Radio BMW Professional |
S663A=Yes |
|||||||||
| 02 | Additional kit, mounting components | TRAFFIC PRO E39 | 1 | 02/2001 | 65900139885 | ENDED | Shop at ECS Tuning | |||
| 03 | BMW CD Europe | V 8.0 | 1 | 65900393738 | ENDED | Shop at ECS Tuning | ||||
| 04 | Operating instructions | TRAFFIC PRO | 1 | 01290141892 | Shop at ECS Tuning | |||||
| 04 | Operating instructions | TRAFFIC PRO | 1 | 01290141893 | Shop at ECS Tuning | |||||
| 05 | Gps antenna | TRAFFIC PRO | 1 | 65900139602 | $99.32 | ENDED | Shop at ECS Tuning | |||
| 06 | Radio frame | TRAFFIC PRO | 1 | 65900139639 | $80.00 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
