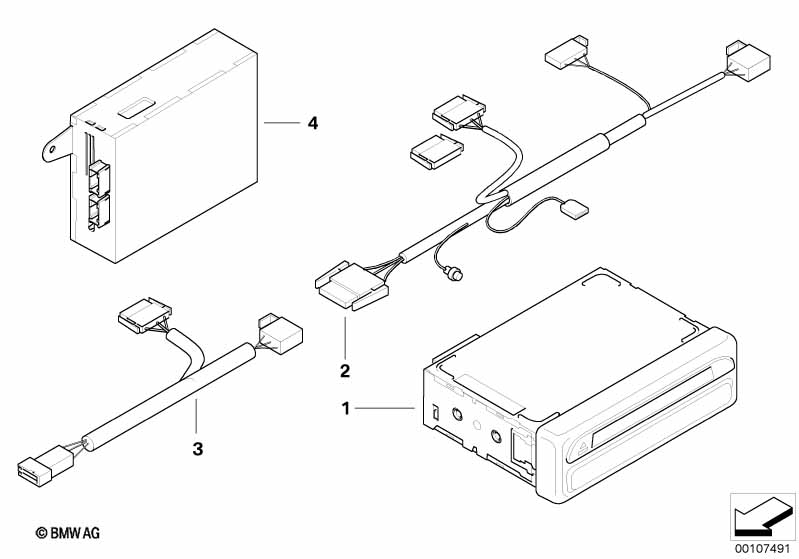

Modificat. navigation MK-1 to MK-3 for BMW 7 Series E38 740d (2001)
This Modificat. navigation MK-1 to MK-3 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles up to 9/97 For vehicles with TV function a video module is additionally required For vehicles with SA 677, DSP amplifier 65 12 4 127 873 is to be additionally installed |
|||||||||
| 01 | Navigation computer III | 1 | 65906915036 | $2560.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connecting lead, navigation | MKIII/BITII | 1 | 61126907840 | $109.53 | Shop at ECS Tuning | ||||
| 03 | Adapter lead | 1 | 61128381219 | $42.43 | Shop at ECS Tuning | |||||
| 04 | RP REMAN video module high uncoded | 1 | 65509178796 | $783.51 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
