Modificat. navigation MK-1 to MK-3 for BMW 5 Series E39 528i (2000)

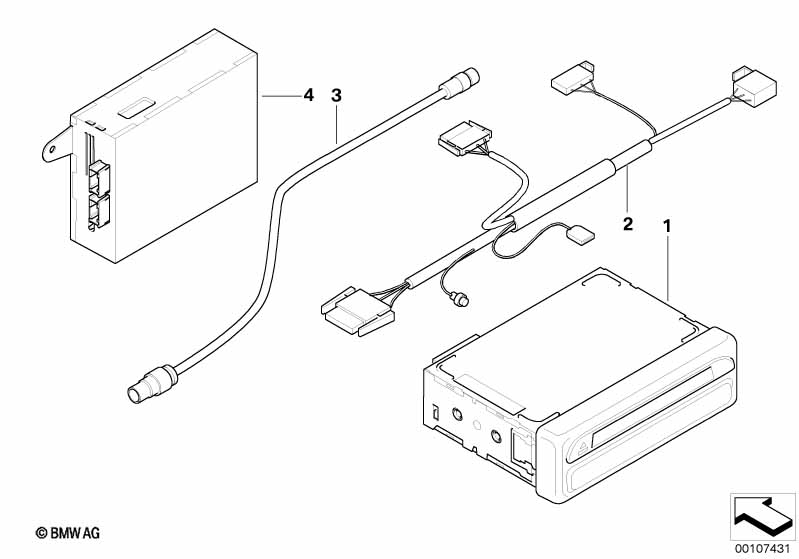

This Modificat. navigation MK-1 to MK-3 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles up to 9/97 For vehicles with TV function a video module is additionally required |
|||||||||
| 01 | Navigation computer III | 1 | 65906915036 | $2560.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connecting lead, navigation | MK III | 1 | 61126915134 | Shop at ECS Tuning | |||||
| 03 | Antenna cable GPS | 2900MM | 1 | 61128372410 | $44.33 | Shop at ECS Tuning | ||||
| 04 | RP REMAN video module high uncoded | 1 | 65509178796 | $783.51 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Modificat. navigation MK-1 to MK-3?
- This technical diagram illustrates the Modificat. navigation MK-1 to MK-3 within the Retrofitting / conversion / accessories group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Navigation computer III (Part #65906915036).
- Which models use the hardware listed in this Modificat. navigation MK-1 to MK-3?
- The hardware and components featured in the Modificat. navigation MK-1 to MK-3 are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Navigation computer III (65906915036) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Modificat. navigation MK-1 to MK-3 assembly?
- Each item in the Modificat. navigation MK-1 to MK-3 corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Navigation computer III by locating its position on the schematic, which then links to the official BMW part number 65906915036 for the Retrofitting / conversion / accessories section.
