Cassette box for BMW 5 Series E34 M5 (1995)

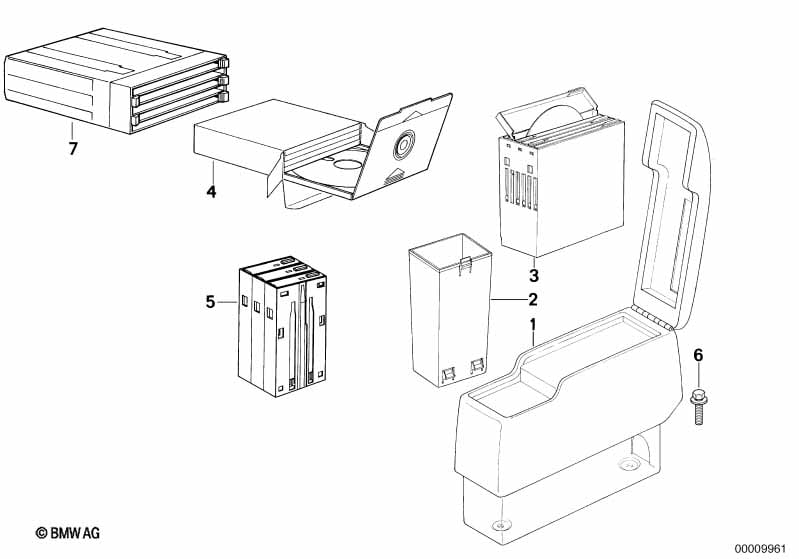

This Cassette box technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing for center console | SCHWARZ | 1 | 51168107731 | $472.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | INDIGO | 1 | 51168107733 | $472.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | NATUR | 1 | 51168107734 | $472.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | HAVANNA | 1 | 51168107735 | $680.76 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | CARDINALROT | 1 | 51168107736 | $591.48 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | KARMESINROT | 1 | 51168107813 | $472.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | SILBERGRAU HELL | 1 | 51168138376 | $530.67 | Shop at ECS Tuning | ||||
| 01 | Housing for center console | SILBERGRAU | 1 | 51168138377 | $530.67 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | ULTRAMARIN | 1 | 51168138378 | $472.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT | 1 | 51168138379 | $472.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 51168138380 | $472.07 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim |
=Yes |
|||||||||
| 01 | Housing for center console | SCHWARZ | 1 | 51168102381 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | SILBER | 1 | 51168102382 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | INDIGO | 1 | 51168102383 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | NATUR | 1 | 51168102384 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | KARMESINROT | 1 | 51168102385 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | SILBERGRAU HELL | 1 | 51168138396 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | ULTRAMARIN | 1 | 51168138397 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | PERGAMENT | 1 | 51168138398 | $697.50 | ENDED | Shop at ECS Tuning | |||
| 01 | Housing for center console | BRASIL | 1 | 51168138399 | $675.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Container | 1 | 51168105344 | ENDED | Shop at ECS Tuning | |||||
| 03 | CD box | 1 | 65141379400 | $116.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | CD-cartridge 5 pieces | BAV.ELECTR.CD | 1 | 65129061583 | $48.25 | ENDED | Shop at ECS Tuning | |||
| 05 | Profound cassette box | 1 | 65141390339 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 06 | Torx-bolt for plastic material | K 4X14 | 1 | 06/1996 | 51411973617 | $0.33 | ENDED | Shop at ECS Tuning | ||
| 06 | Torx-bolt for plastic material | 4X14 ZNT | 1 | 51419124467 | $0.28 | Shop at ECS Tuning | ||||
| 07 | CD-box for cartridge | 1 | 65141390715 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
