Cassette box for BMW 3 Series E36 320i (1999)

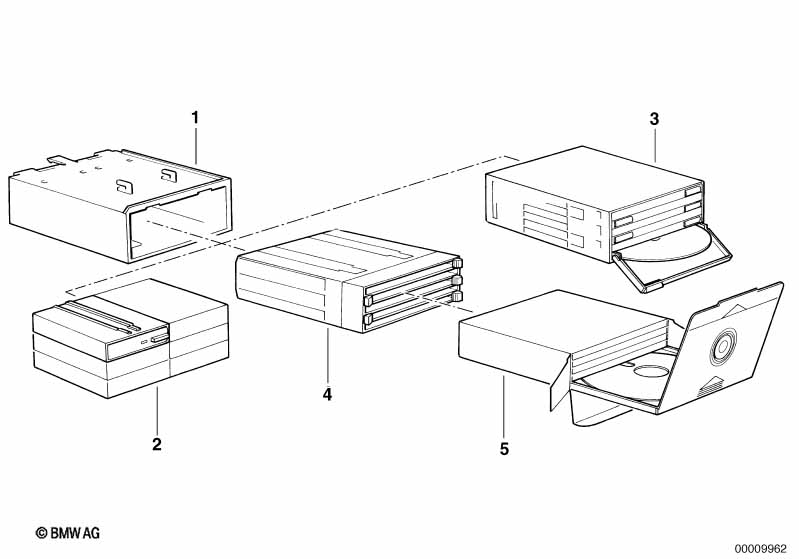

This Cassette box technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Installation instructions available through ASAP |
||||||||||
| 01 | CD-support glove box | 1 | 65141387760 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 02 | Profound cassette box | 6 | 65141390339 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 03 | CD box | 1 | 65141379400 | $116.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | CD-box for cartridge | 1 | 65141390715 | ENDED | Shop at ECS Tuning | |||||
| 05 | CD-cartridge 5 pieces | BAV.ELECTR.CD | 1 | 65129061583 | $48.25 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Cassette box?
- This technical diagram illustrates the Cassette box within the Retrofitting / conversion / accessories group for the 3 Series E36 320i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the CD-support glove box (Part #65141387760).
- Which models use the hardware listed in this Cassette box?
- The hardware and components featured in the Cassette box are specific to the 3 Series E36 320i produced during 1999. These technical specifications ensure that parts like the CD-support glove box (65141387760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cassette box assembly?
- Each item in the Cassette box corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the CD-support glove box by locating its position on the schematic, which then links to the official BMW part number 65141387760 for the Retrofitting / conversion / accessories section.
